Product Name:
K127/KA127/KF127/KAF127 hardened helical bevel gearbox bevel reducer with 7.5kw 9.2kw 11kw 15kw 18.5kw 22kw 30kw 37kw 45KW 55KW 75KW 90KW gearmotors
Model No.:
K127

Product Abstract:

K127/KA127/KF127/KAF127 hardened helical bevel gearbox bevel reducer with 7.5kw 9.2kw 11kw 15kw 18.5kw 22kw 30kw 37kw 45KW 55KW 75KW 90KW gearmotors Speed ratio: 1:3-1:300 K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187

Product Description

K127/KA127/KF127/KAF127 hardened helical bevel gearbox bevel reducer with 7.5kw 9.2kw 11kw 15kw 18.5kw 22kw 30kw 37kw 45KW 55KW 75KW 90KW gearmotors

Speed ratio: 1:3-1:300

Customise in color,nameplate,packing.

Contact us for enquiry and ordering:

whatsapp:+8613760859053

https://wa.me/8613760859053

email: sales@yygear.com

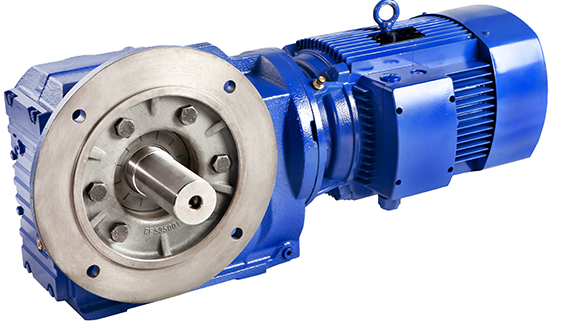

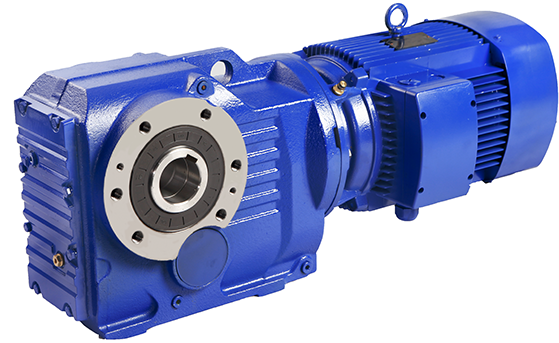

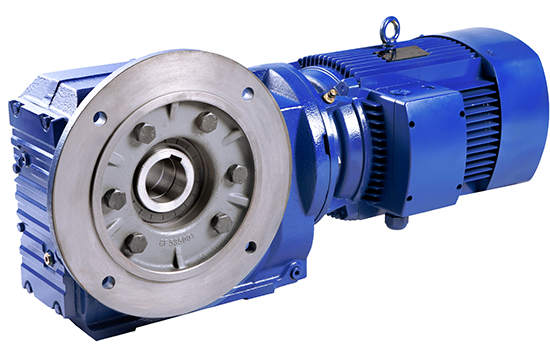

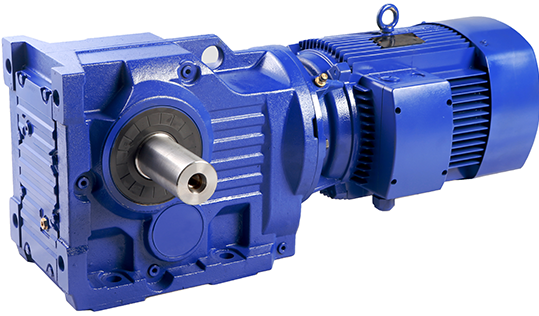

K127	KA127	KAF127	KF127

k127 series helical gear reducer,gearbox,gear motor has the characteristics of strong versatility, good combination and strong carrying capacity. It has the advantages of easy transmission ratio, high efficiency, small vibration and large radial load of shaft. This series not only can be combined with various reducers and transmissions to meet the requirements, but also facilitates the localization of related transmission equipment.

Product description:
feature	Main application industries
High modular design.	Cement machinery, environmental protection machinery, electronic appliances, road construction machinery,
The integral casting shell has compact size, high load carrying capacity, stable transmission and low noise.	Building materials machinery, rubber machinery, petroleum machinery and other industries
Good anti-leakage performance, good sealing, can be widely used in industrial production.
Energy efficient.
Cost savings and low maintenance costs.

Technical data:

Shell hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Gear surface hardness	HRC58 ° ~ 62 °
Gear core hardness	HRC33 ~ 40
Input / output shaft material	42CrMo alloy steel
Input / output shaft hardness	HRC25 ~ 30
Gear machining accuracy	Precision grinding, level 6 ~ 5
lubricating oil	GB L-CKC220-460, Shell withstand voltage 220-460
Heat treatment	Tempering, carburizing, quenching, etc.
effectiveness	94% ~ 96% (depending on the transmission stage)
Noise (maximum)	60 ~ 68dB
Temperature rise (MAX)	40 ° C
Temperature rise (oil) (maximum)	50 ° C
vibration	≤20µm
Recoil	≤20Arcmin

Model	Shaft Dia (mm)		Center Height (mm)	Output	Power	Speed Ratio	Permissible	Weight
Model	Solid	Hallow	Center Height (mm)	Flange Dia.(mm)	(kw)	Speed Ratio	Torque (N.m)	(KGS)
37	φ25k6	φ30h7	100	φ110/160	0.18-3.0	5.36-106.38	200	11
47	φ30k6	φ35h7	112	φ120/200	0.18-3.0	5.81-131.87	400	20
57	φ35k6	φ40h7	132	φ155/250	0.18-5.5	6.57-145.14	600	27
67	φ40k6	φ40h7	140	φ155/250	0.18-5.5	7.14-144.79	820	33
77	φ50k6	φ170	180	φ170/300	0.37-11.0	7.24-292.18	1550	57
87	φ60m6	φ60h7	212	φ215/350	0.75-22.0	7.19-197.18	2700	85
97	φ70m6	φ70h7	265	φ260/450	1.1-30.0	8.95-176.05	4300	130
107	φ90m6	φ90h7	315	φ304/450	3.0-45.0	8.74-141.46	8000	250
127	φ110m6	φ100h7	375	φ350/550	7.5-90.0	8.68-146.07	13000	380
157	φ120m6	φ120h7	450	φ400/660	11.0-160.0	12.65-150.41	18000	610
167	φ160m6	φ140h7	500	φ800	11.0-200.0	17.28-163.91	32000	1015
187	φ190m6	φ160h7	600	φ800	18.5-200.0	17.27-180.78	50000	1700
