Helical geared motor

[Return Home] [Go Back]

Product Name:
Helical geared motor
Model No.:
YH
Attachment download

Product Abstract:

Horizontal Helical geared motor gearbox reducer 1.Motor Power: 1/8HP,1/4HP,1/2HP,1HP,2HP,3HP,5HP,7.5HP,10HP 2.Ratio: 1:3-1:200 3.Output Shaft Dia: 18mm,22mm,28mm,32mm,40mm,50mm,60mm 4.Material of housing: Aluminium Alloy,Casting Iron 5.Phase: Single Phase, Three Phase 6.Volts: 220V,380V,415V,440V,480VAC 7.Hz: 50Hz,60Hz 8.Input RPM: 1400RPM

Product Description

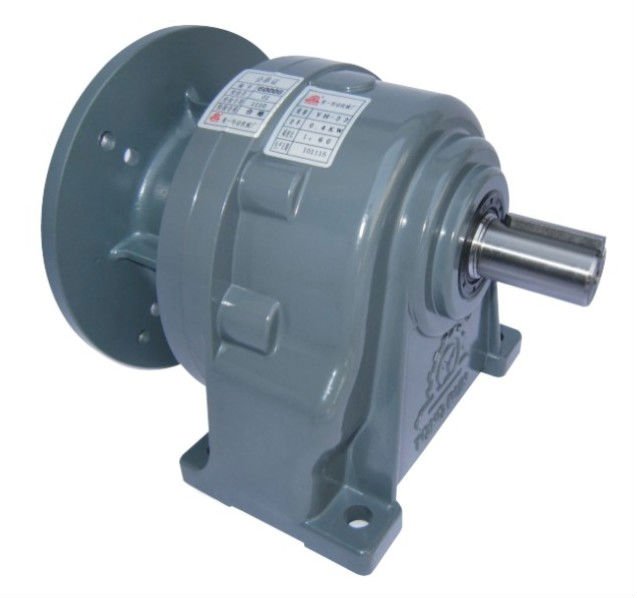

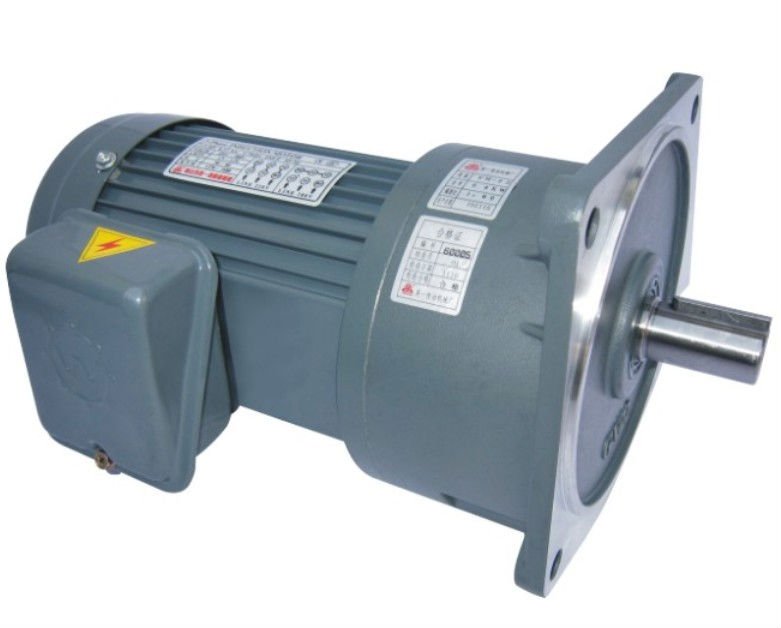

Horizontal Helical geared motor gearbox reducer

Customise in logo,nameplate,packing.

Contact us for enquiry and ordering:

whatsapp:+8613760859053

https://wa.me/8613760859053

email: sales@yygear.com

Type:	Helical Horizontal and vertical foot or flange mounted gearmotor gearbox reducer
1.Motor Power:	1/8HP,1/4HP,1/2HP,1HP,2HP,3HP,5HP,7.5HP,10HP
2.Ratio:	3,5,7,10,13,15,20,25,30,35,40,50,60,70,80,90,100,120,130,140,150,160,180,200
3.Output Shaft Dia:	18mm,22mm,28mm,32mm,40mm,50mm,60mm
4.Material of housing:	Aluminium Alloy-shaft 28mm,32mm,Casting Iron-shaft 32mm, 40mm
5.Phase:	Single Phase, Three Phase
6.Volts:	220V,380V,415V,440V,480VAC
7.Hz:	50Hz,60Hz
8.Input RPM:	1400RPM

Detailed Specification:

Horse power	Ratio Range	A1	A2	D	E	F	G	H	L	J	K	M	X	Y	Z	Output shaft					Kgs
Horse power	Ratio Range	A1	A2	D	E	F	G	H	L	J	K	M	X	Y	Z	P	Q	S	T	W	Kgs
100W(0.1KW), 1/8HP	3-50	250	270	40	110	135	65	9	10	16	48	127	132	88.5	105	30	25	18	20	5	5.3
100W(0.1KW), 1/8HP	60-200	285	300	65	130	163	90	11	15	18.2	56	127	152	97.5	105	40	35	22	25	7	6.9

200W(0.2KW), 1/4HP(0.25HP)	3-10	270	285	40	110	135	65	9	10	16	48	127	132	88.5	105	30	25	18	20	5	6.7
	15-90	305	320	65	130	163	90	11	15	18.2	56	127	152	97.5	105	40	35	22	25	7	8.6
	100-200	330	350	90	140	180	120	11	15	20.8	66	127	180	116	105	45	40	28	31	7	11

400W(0.4KW), 1/2HP(0.5HP)	3-10	320	340	65	130	163	90	11	15	18.2	56	127	152	97.5	105	40	35	22	25	7	11
	15-90	350	370	90	140	180	120	11	15	20.8	66	127	180	116	105	45	40	28	31	7	14
	100-200	385	405	130	170	215	160	13	20	30.2	76	127	210	138.5	105	55	50	32	35.5	10	26

750W(0.75KW) ,1HP	3-25	360	390	90	140	180	120	11	15	20.8	66	165	180	116	125	45	40	28	31	7	15
	30-120	400	425	130	170	215	160	13	20	30.2	76	165	210	138.5	125	55	50	32	35.5	10	28
	125-200	420	455	150	210	260	185	15	23	42.2	85	165	248	160	125	65	60	40	43.5	10	42

1500W(1.5KW) ,2HP	3-25	440	480	130	170	215	160	13	20	30.2	76	190	210	138.5	145	55	50	32	35.5	10	34
	30-120	482	510	150	210	260	185	15	23	42.2	85	190	248	160	145	65	60	40	43.5	10	47
	125-180	515	555	170	265	330	220	19	25	51.4	109	190	315	200	145	80	75	50	54	14	52

2200W(2.2KW) ,3HP	3-60	485	ã€€	150	210	260	185	15	23	42.2	85	215	248	160	160	65	60	40	43.5	10	48
2200W(2.2KW) ,3HP	70-120	530	ã€€	170	265	330	220	19	25	51.4	109	215	315	200	160	80	75	50	54	14	55

3700W(3.7KW) ,5HP	3-25	500	ã€€	150	210	260	185	15	23	42.2	85	215	248	160	160	65	60	40	43.5	10	50
3700W(3.7KW) ,5HP	30-80	545	ã€€	170	265	330	220	19	25	51.4	109	215	315	200	160	80	75	50	54	14	57

Detailed Geared motor Description:

YH gearmotor, its the cases are cast precisely by high steel material or Aluminium and processed by CNC processing center ; the gears are made of high-quality alloy steel, are treated with surface hardening and gear ground then precision grinding; The motor 100% copper wire imported from Taiwan,The whole geared motors are small in volume, with great load-carrying capacity, steady running, low noise and high efficiency.

All model type: YH,YV,YHM,YVM,YHD,YVD

Motor:100W 200W 400W 750W 1100W 1500W 2200W 3700W 5500W 7500W

0.1KW 0.2KW 0.4KW 0.75KW 1.1KW 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW

1/8HP 1/4HP 1/2HP 0.5HP 1HP 1.5HP 2HP 3HP 5HP 5.5HP 7.5HP 10HP

Shaft:18mm 22mm 28mm 32mm 40mm 50mm 60mm
