1.5HP,1.1kw,1100w-Helical gear motor reducer

[Return Home] [Go Back]

Product Name:

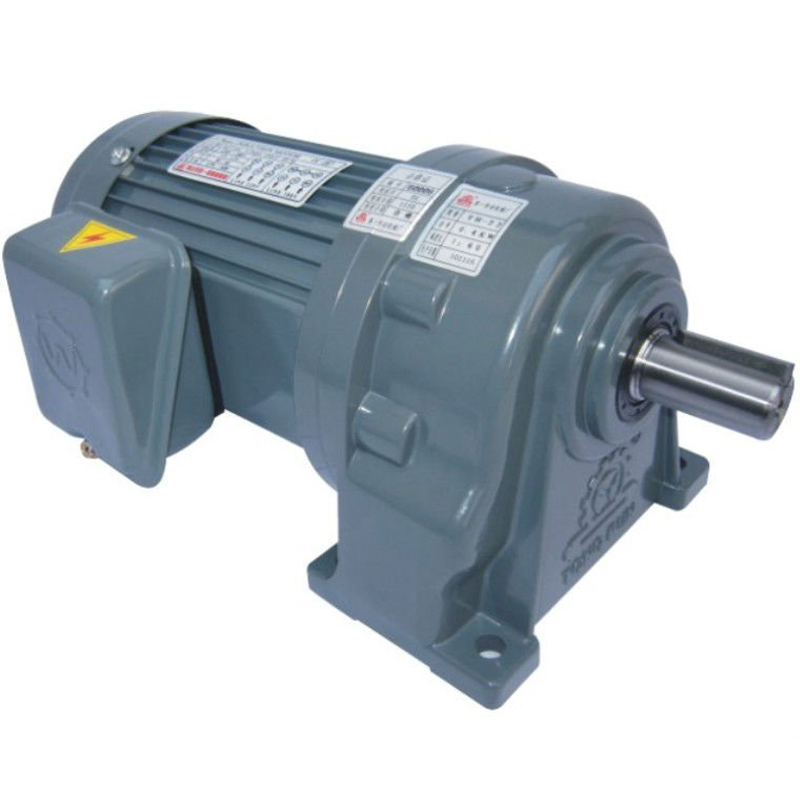

1.5HP,1.1kw,1100w-Helical gear motor reducer
Model No.:
YH32

Product Abstract:

YH32-Horizontal Helical gear motor reducer 1.Rated Power:1.1kw,1100w,1.5hp 2.Speed Ratio:1:3-1:200 3.Output Shaft Dia: 32mm,40mm,50mm 4.Material of housing:Aluminium Alloy / Casting Iron 5.Single Phase / Three Phase 6.220v / 380v / 415V and others 7.50Hz / 60Hz

Product Description

Type:	YH - Horizontal foot mounted gearmotor gearbox reducer
1.Motor Power:	1.5HP,1.1kw,1100w
2.Ratio:	3,5,7,10,13,15,20,25,30,35,40,50,60,70,80,90,100,120,130,140,150,160,180,200
3.Output Shaft Dia:	28mm,32mm,40mm
4.Material of housing:	Aluminium Alloy-shaft 28mm,32mm,Casting Iron-shaft 32mm, 40mm
5.Phase:	Single Phase, Three Phase
6.Volts:	220V,380V,415V,440V,480VAC
7.Hz:	50Hz,60Hz
8.Input RPM:	1400RPM

Customise in logo,nameplate,packing.

Contact us for enquiry and ordering:

whatsapp:+8613760859053

https://wa.me/8613760859053

email: sales@yygear.com

Detailed Specification:

Ratio Range	A1	A2	D	E	F	G	H	L	J	K	M	X	Y	Z	Output shaft					Kgs
Ratio Range	A1	A2	D	E	F	G	H	L	J	K	M	X	Y	Z	P	Q	S	T	W	Kgs
3-25	360	390	90	140	180	120	11	15	20.8	66	165	180	116	125	45	40	28	31	7	15
30-120	400	425	130	170	215	160	13	20	30.2	76	165	210	138.5	125	55	50	32	35.5	10	28
125-200	420	455	150	210	260	185	15	23	42.2	85	165	248	160	125	65	60	40	43.5	10	42

Detailed Geared motor Description:

YH gearmotor, its the cases are cast precisely by high steel material or Aluminium and processed by CNC processing center ; the gears are made of high-quality alloy steel, are treated with surface hardening and gear ground then precision grinding; The motor 100% copper wire imported from Taiwan,The whole geared motors are small in volume, with great load-carrying capacity, steady running, low noise and high efficiency.

All model type: YH,YV,YHM,YVM,YHD,YVD

Motor:100W 200W 400W 750W 1100W 1500W 2200W 3700W 5500W 7500W

0.1KW 0.2KW 0.4KW 0.75KW 1.1KW 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW

1/8HP 1/4HP 1/2HP 0.5HP 1HP 1.5HP 2HP 3HP 5HP 5.5HP 7.5HP 10HP

Shaft:18mm 22mm 28mm 32mm 40mm 50mm 60mm

Technique parameter:

Specification & Performance Reference Valuesor Gear Reducer Motor
3-PHASE					1-PHASE
PH	HZ	V	A	R.M.P	PH	HZ	V	A	R.M.P
0.1KW	50/60	220/380	1.0/0.6	1350/1650	0.1KW	50/60	110/220	3.0/1.5	1350/1650
0.2KW	50/60	220/380	1.2/0.8	1350/1650	0.2KW	50/60	110/220	3.6/1.8	1350/1650
0.4KW	50/60	220/380	2.1/1.3	1380/1680	0.4KW	50/60	110/220	7.6/3.8	1380/1680
0.75KW	50/60	220/380	2.5/2.3	1400/1700	0.75KW	50/60	110/220	12./6	1400/1700
1.5KW	50/60	220/380	6/3.7	1410/1720	1.5KW	50/60	110/220	20./10	1410/1720
2.2KW	50/60	220/380	9./6	1410/1720
3.7KW	50/60	220/380	14./8	1420/1730
