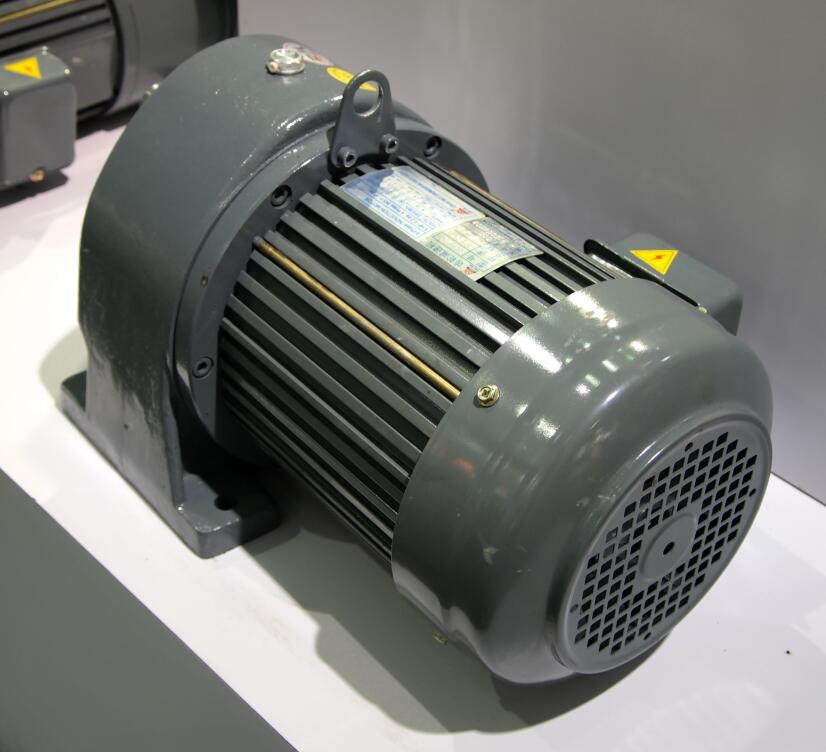

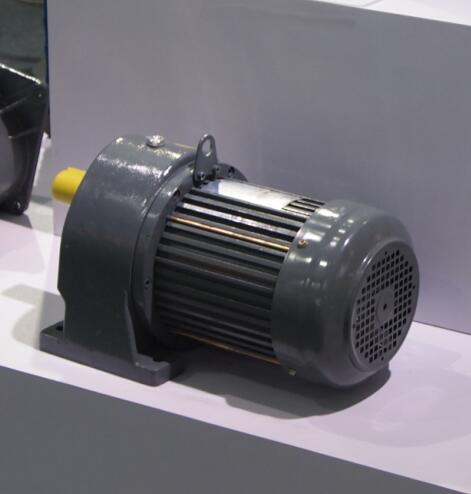

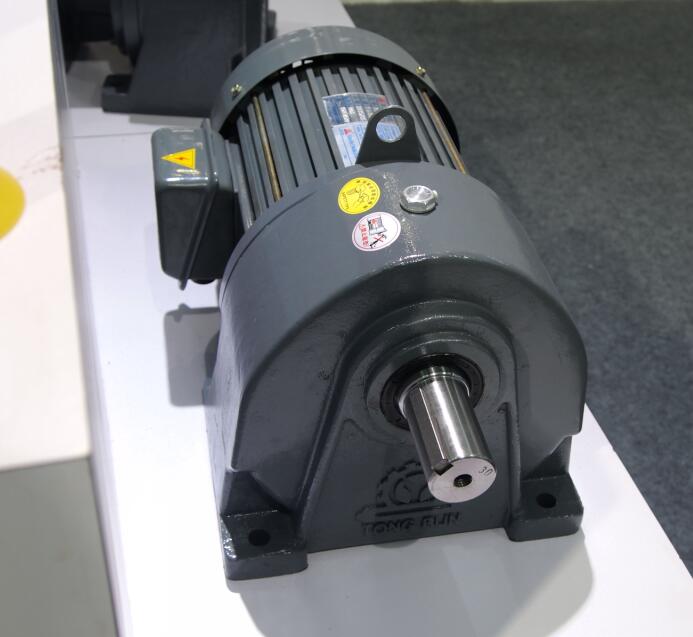

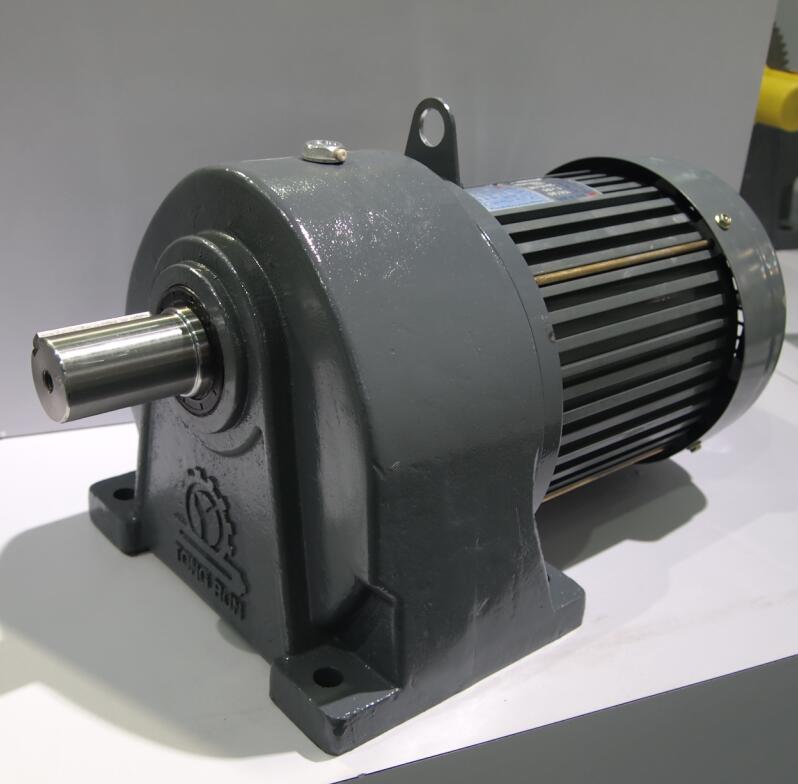

3.0HP,2.2KW,2200W foot mounted gearmotor gearbox reducer

[Return Home] [Go Back]

3.0HP,2.2KW,2200W foot mounted gearmotor gearbox reducer

Product Abstract:

Type: YH40 - Horizontal foot mounted gearmotor gearbox reducer 1.Motor Power: 3.0HP,2.2KW,2200W 2.Ratio: 3,5,7,10,13,15,20,25,30,35,40,50,60,70,80,90,100,120,130,140,150,160,180,200 3.Output Shaft Dia: 32mm,40mm,50mm 4.Material of housing: Casting Iron 5.Phase: Single Phase, Three Phase 6.Volts: 220V,380V,415V,440V,480VAC 7.Hz: 50Hz,60Hz 8.Input RPM: 1400RPM


Product Description
Type: YH40 - Horizontal foot mounted gearmotor gearbox reducer
1.Motor Power: 3.0HP,2.2KW,2200W
2.Ratio: 3,5,7,10,13,15,20,25,30,35,40,50,60,70,80,90,100,120,130,140,150,160,180,200
3.Output Shaft Dia:  32mm,40mm,50mm
4.Material of housing: Casting Iron-shaft 32mm, 40mm,50mm
5.Phase: Single Phase, Three Phase
6.Volts: 220V,380V,415V,440V,480VAC
7.Hz: 50Hz,60Hz
8.Input RPM: 1400RPM

Detailed Specification:
Ratio Range A1 A2 D E F G H L J K M X Y Z Output shaft Kgs
P Q S T W
3-60 485   150 210 260 185 15 23 42.2 85 215 248 160 160 65 60 40 43.5 10 48
70-120 530   170 265 330 220 19 25 51.4 109 215 315 200 160 80 75 50 54 14 55
YH gearmotor, its the cases are cast precisely by high steel material or Aluminium and processed by CNC processing center ; the gears are made of high-quality alloy steel, are treated with surface hardening and gear ground then precision grinding; The motor 100% copper wire imported from Taiwan,The whole geared motors are small in volume, with great load-carrying capacity, steady running, low noise and high efficiency.
Detailed Geared motor Description:



All model type: YH,YV,YHM,YVM,YHD,YVD

Motor:100W 200W 400W 750W 1100W 1500W 2200W 3700W 5500W 7500W

          0.1KW  0.2KW 0.4KW 0.75KW 1.1KW 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW

          1/8HP 1/4HP 1/2HP 0.5HP 1HP 1.5HP 2HP 3HP 5HP 5.5HP 7.5HP 10HP

Shaft:18mm 22mm 28mm 32mm 40mm 50mm 60mm



Technique parameter:

Specification & Performance Reference Valuesor Gear Reducer Motor
3-PHASE 1-PHASE
PH HZ V A R.M.P PH HZ V A R.M.P
0.1KW 50/60 220/380 1.0/0.6 1350/1650 0.1KW 50/60 110/220 3.0/1.5 1350/1650
0.2KW 50/60 220/380 1.2/0.8 1350/1650 0.2KW 50/60 110/220 3.6/1.8 1350/1650
0.4KW 50/60 220/380 2.1/1.3 1380/1680 0.4KW 50/60 110/220 7.6/3.8 1380/1680
0.75KW 50/60 220/380 2.5/2.3 1400/1700 0.75KW 50/60 110/220 12./6 1400/1700
1.5KW 50/60 220/380 6/3.7 1410/1720 1.5KW 50/60 110/220 20./10 1410/1720
2.2KW 50/60 220/380 9./6 1410/1720
3.7KW 50/60 220/380 14./8 1420/1730


About YINGYI transmission:

2.2kw,2200w,3.0hp-Helical gear motor reducer
