20Tons worm gear linear actuators

[Return Home] [Go Back]

20Tons worm gear linear actuators

Product Abstract:

20Tons worm screw lift jack,worm gear linear actuators Model Size: WPT80 Speed Ratio:1/10,1/20,1/40,1/50 Loading Capacity: 20Tons


Product Description

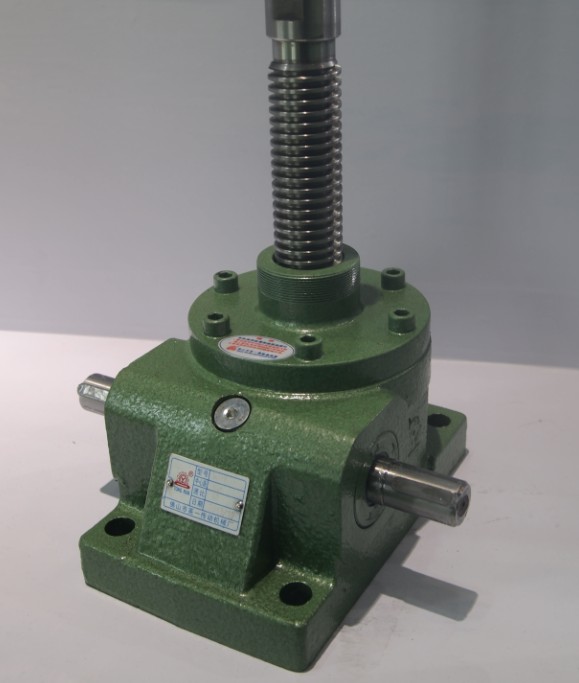

20Tons worm screw lift jack,worm gear linear actuators

Model Size: WPT80
Speed Ratio:1/10,1/20,1/40
Loading Capacity: 20Tons

WPT worm gear screw jack

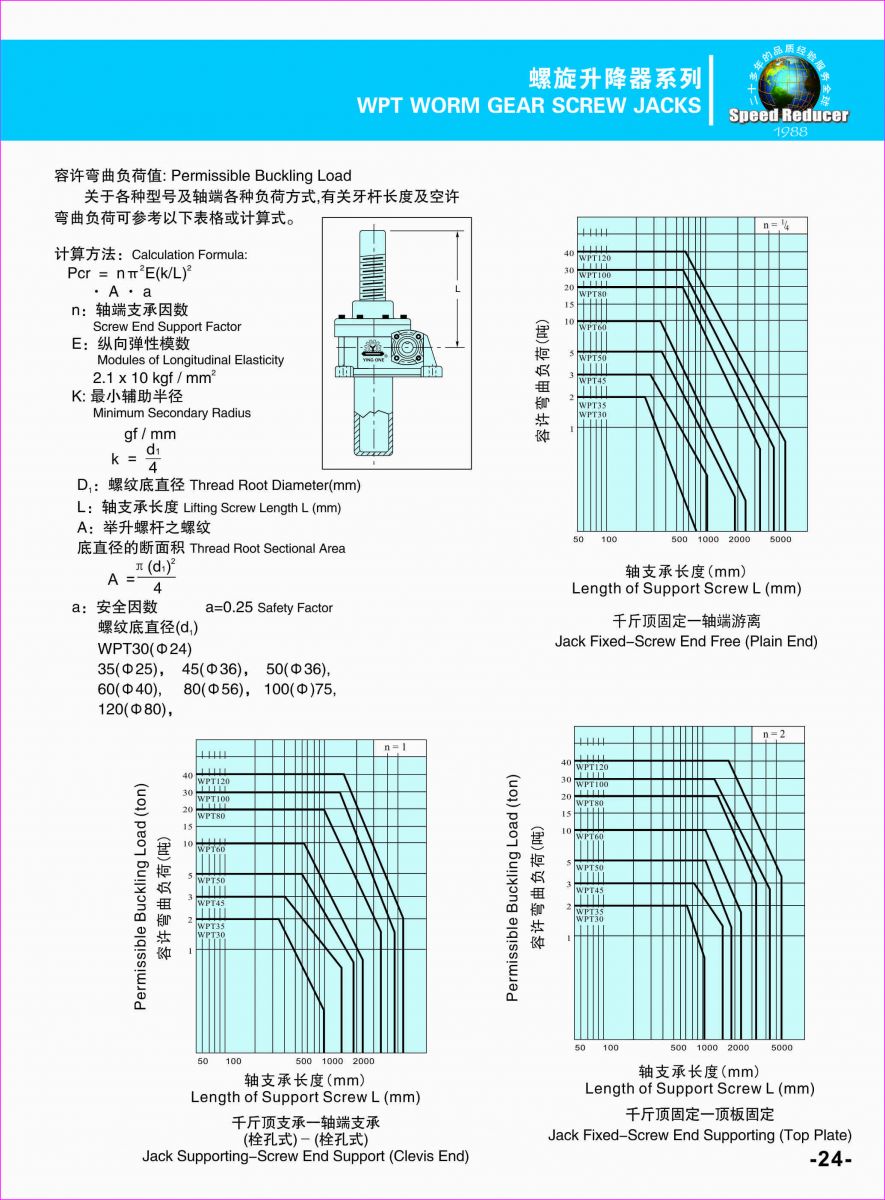

1.Screw Allowable Bending Load-Factor & jack size

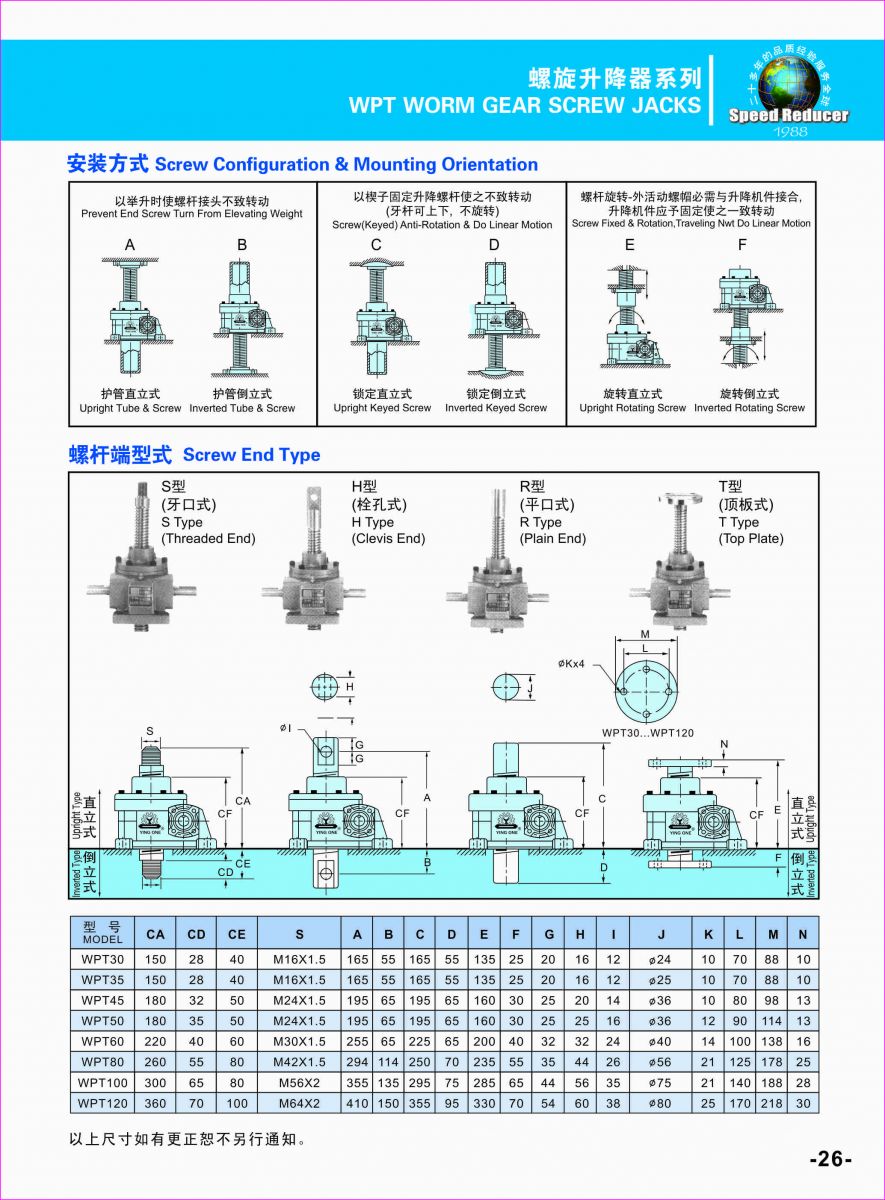

2.Mounting Positions & Screw End Type

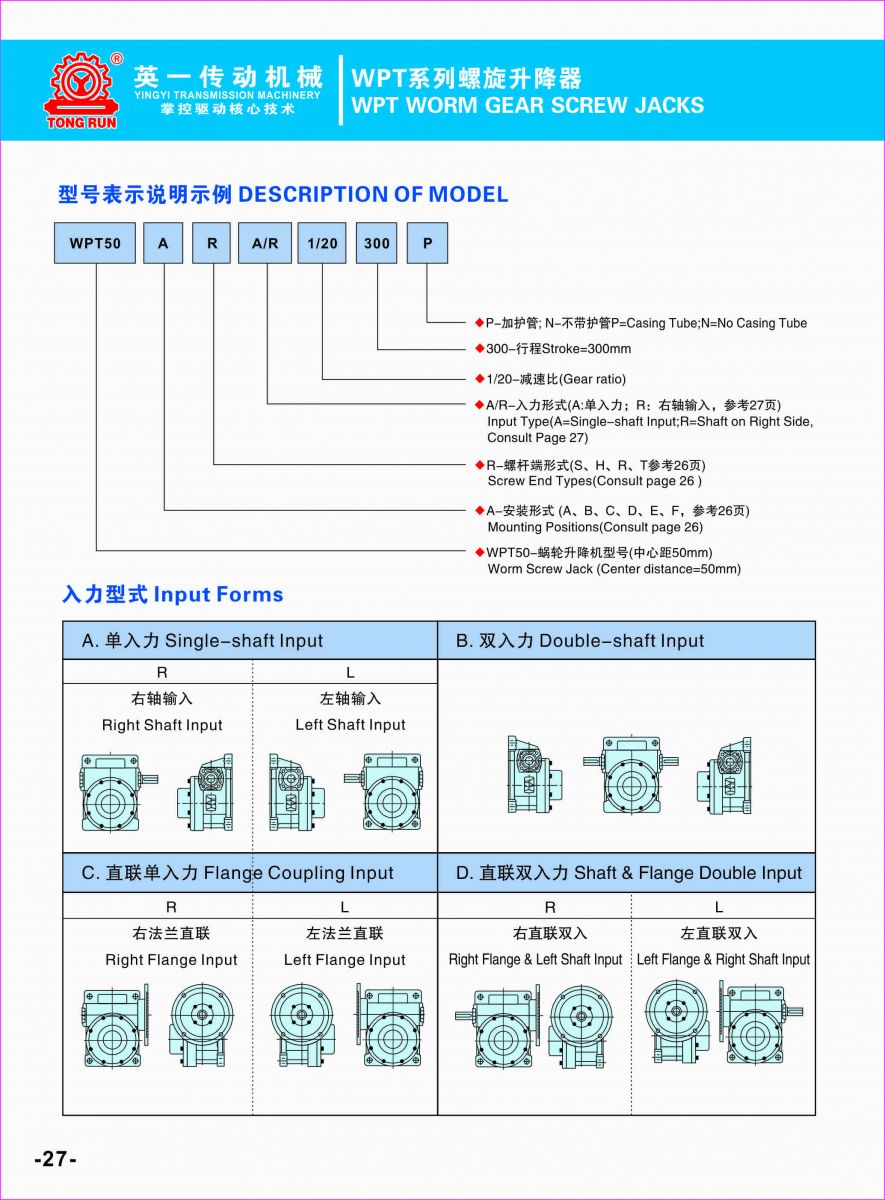

3.Description of Model & Input Shafts Type

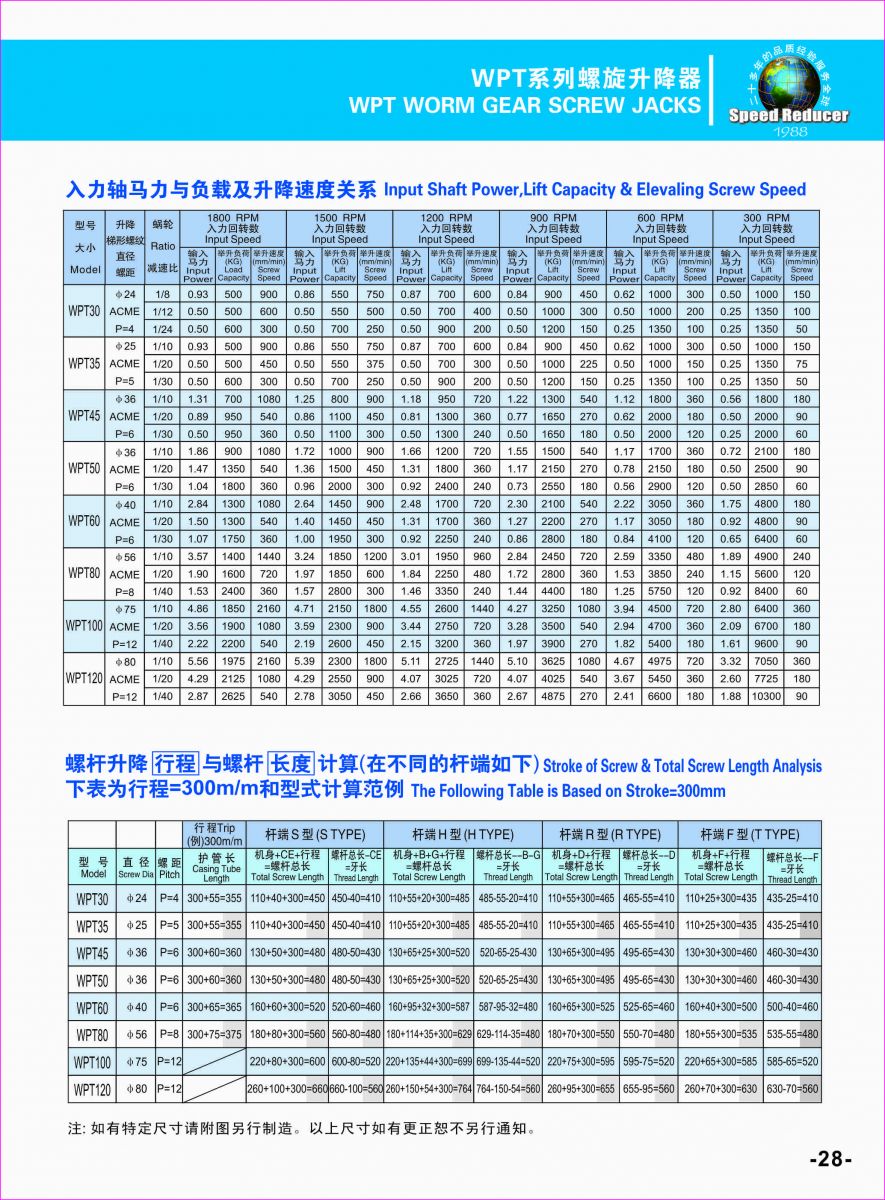

4.Input Shafts Power,Loads and Elevaling Speed
5.Stroke of Elevating screw & screw lenth analysis

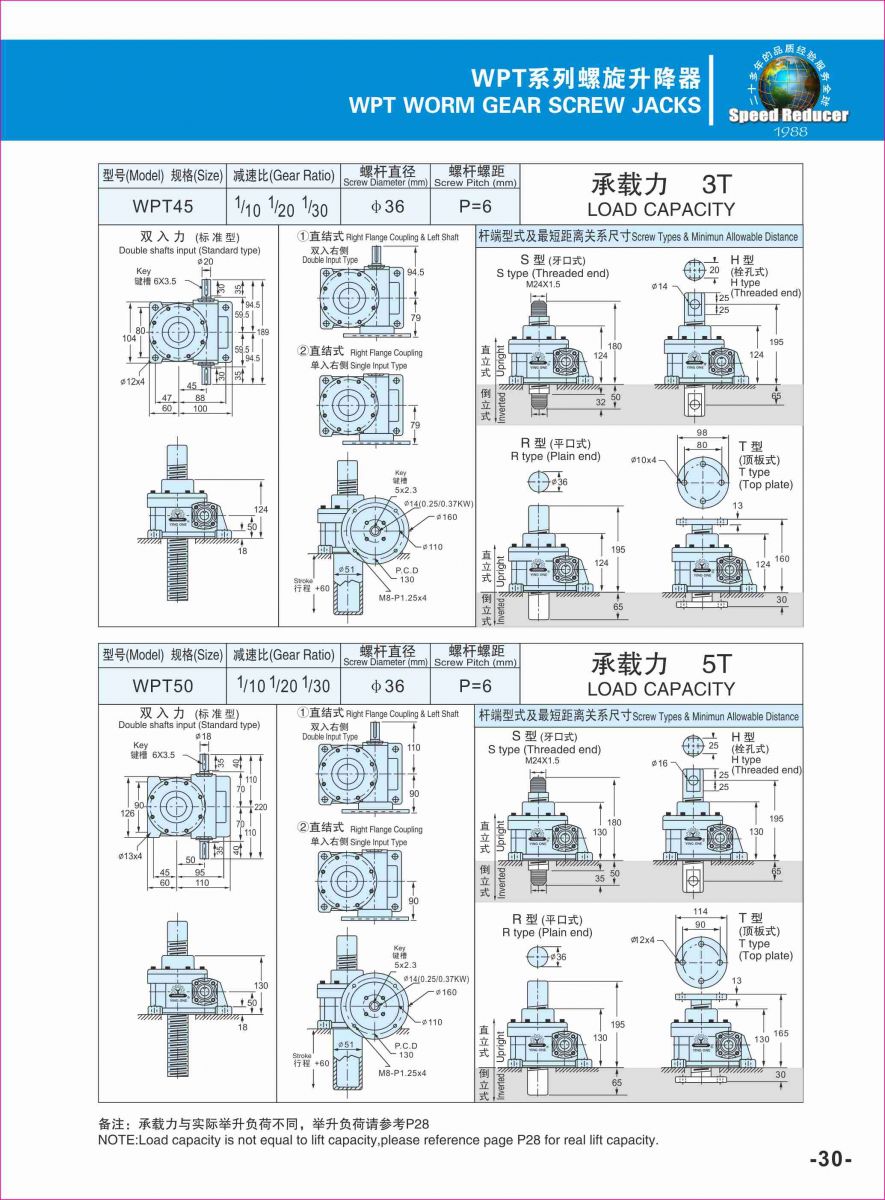

WPT screw jack Installation Dimension Figure

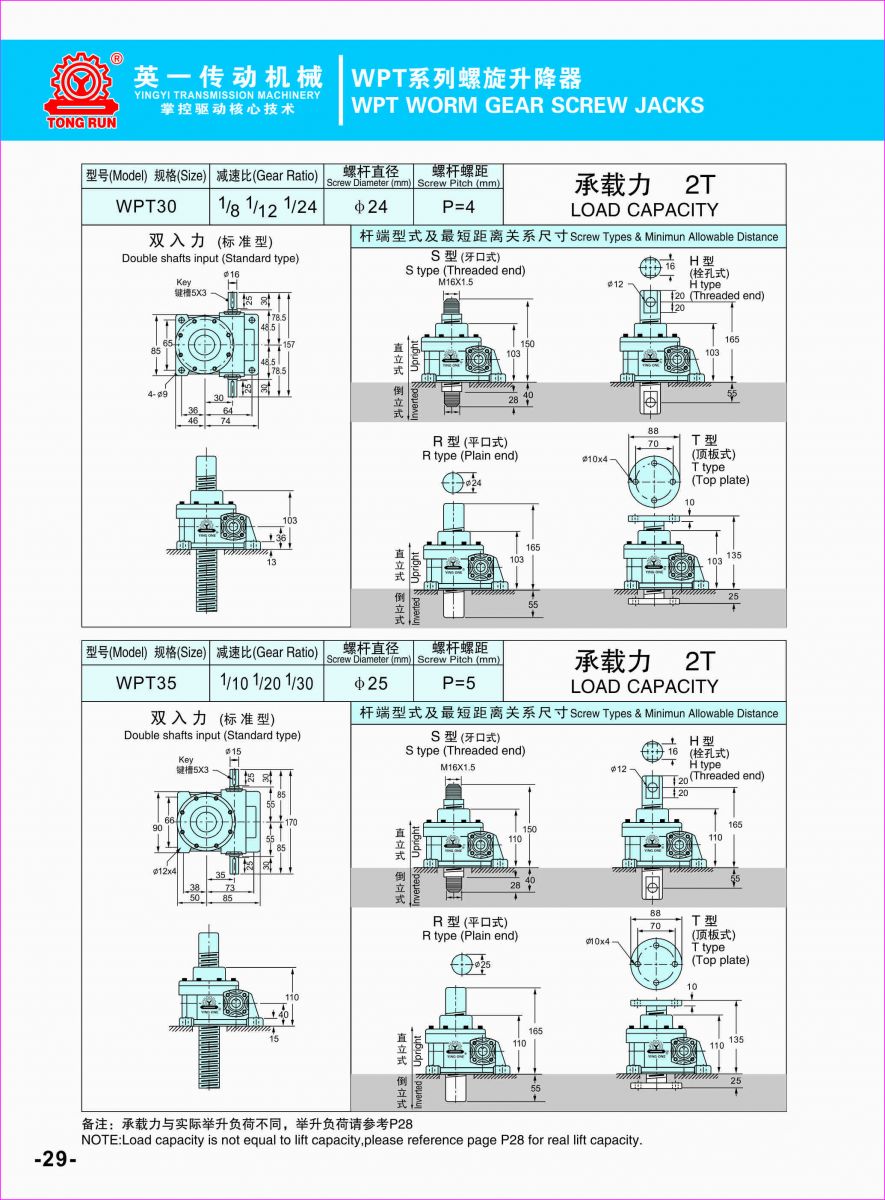

1. WPT-30
2. WPT-35
3. WPT-45
4. WPT-50
5. WPT-60

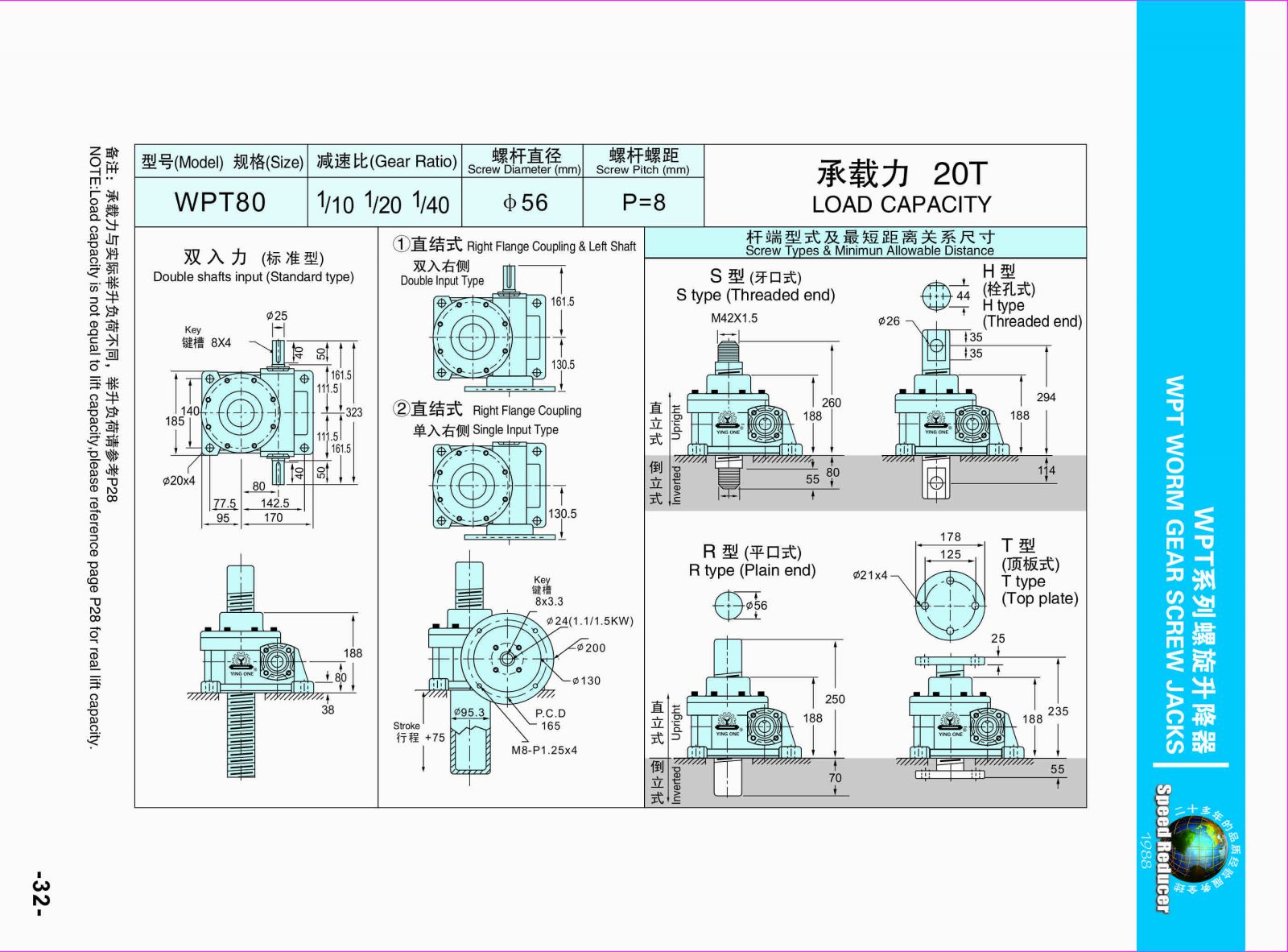

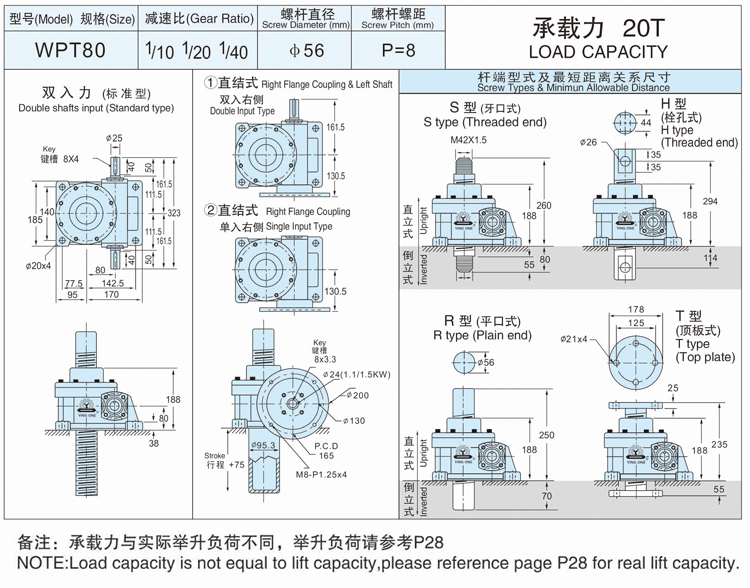

6. WPT-80

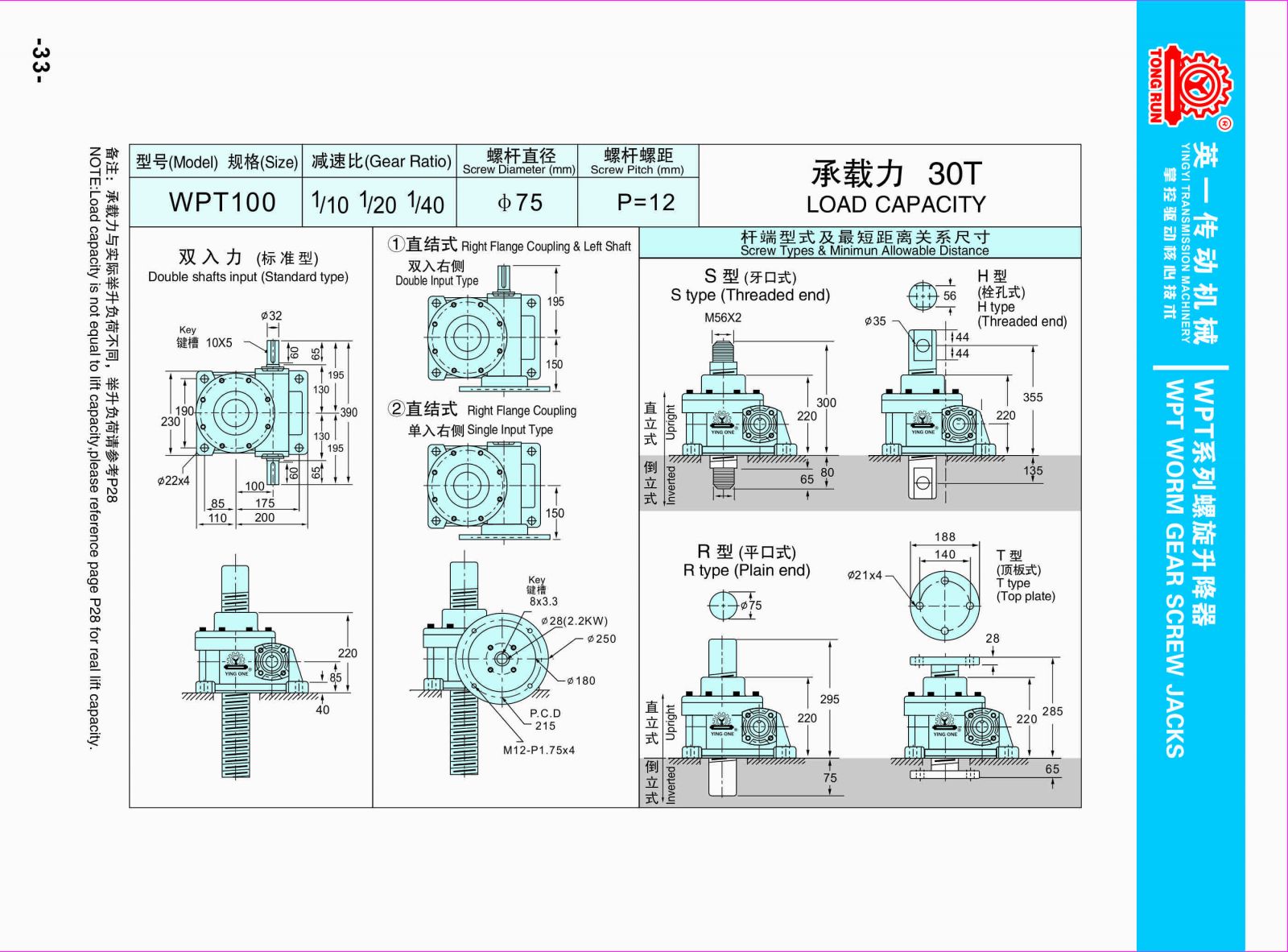

7. WPT-100

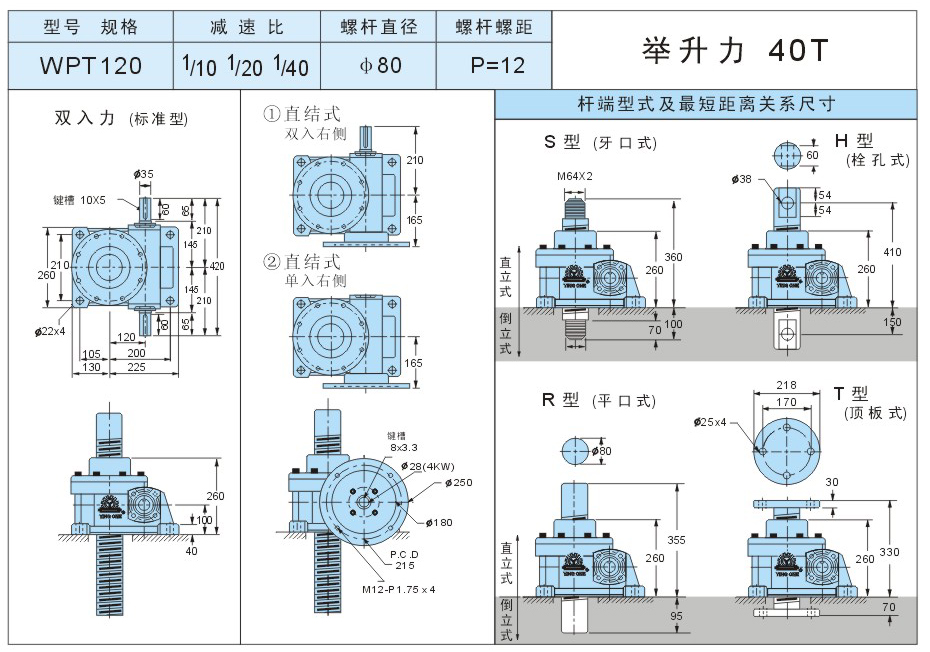

8. WPT-120

20Tons worm screw lift jack,worm gear linear actuators
