Product Name:
Helical worm gear unit reducer motor
Model No.:
S87

Product Abstract:

Helical worm gear unit reducer motor Motor power:0.75KW 1.1KW 1.5KW 2.2KW 3.0KW 4.0KW 5.5KW 7.5KW 11KW 15KW Speed ratio: 1:7.5-1:300 S37 S47 S57 S67 S77 S87 S97 SA37 SA47 SA57 SA67 SA77 SA87 SA97 SF37 SF47 SF57 SF67 SF77 SF87 SF97 SAF37 SAF47 SAF57 SAF67 SAF77 SAF87 SAF97

Product Description

Helical worm gear unit reducer motor

Motor power:0.75KW 1.1KW 1.5KW 2.2KW 3.0KW 4.0KW 5.5KW 7.5KW 11KW 15KW

Speed ratio: 1:7.5-1:300

Customise in color,nameplate,packing.

Contact us for enquiry and ordering:

whatsapp:+8613760859053

https://wa.me/8613760859053

email: sales@yygear.com

S	SA	SAF	SF

S series helical worm gear motor reducer,gearbox,gear motor has the characteristics of strong versatility, good combination and strong carrying capacity. It has the advantages of easy transmission ratio, high efficiency, small vibration and large radial load of shaft. This series not only can be combined with various reducers and transmissions to meet the requirements, but also facilitates the localization of related transmission equipment.

Product description:
feature	Main application industries
High modular design.	Cement machinery, environmental protection machinery, electronic appliances, road construction machinery,
The integral casting shell has compact size, high load carrying capacity, stable transmission and low noise.	Building materials machinery, rubber machinery, petroleum machinery and other industries
Good anti-leakage performance, good sealing, can be widely used in industrial production.
Energy efficient.
Cost savings and low maintenance costs.

Technical data:

Shell hardness	HBS190-240
Gear material	20CrMnTi alloy steel / kk copper
Gear surface hardness	HRC58 ° ~ 62 °
Gear core hardness	HRC33 ~ 40
Input / output shaft material	42CrMo alloy steel
Input / output shaft hardness	HRC25 ~ 30
Gear machining accuracy	Precision grinding, level 6 ~ 5
lubricating oil	GB L-CKC220-460, Shell withstand voltage 220-460
Heat treatment	Tempering, carburizing, quenching, etc.
effectiveness	94% ~ 96% (depending on the transmission stage)
Noise (maximum)	60 ~ 68dB
Temperature rise (MAX)	40 ° C
Temperature rise (oil) (maximum)	50 ° C
vibration	≤20µm
Recoil	≤20Arcmin

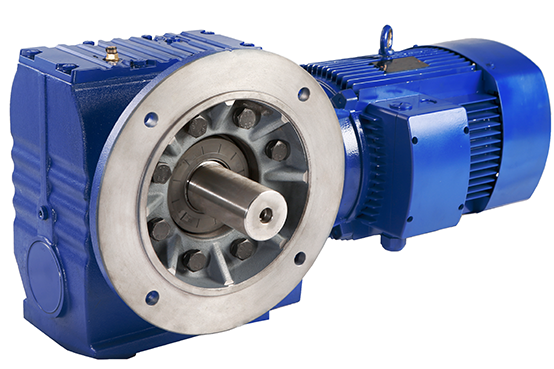

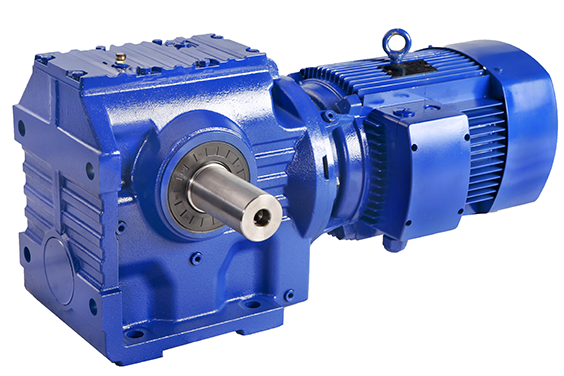

S Series hlical worm gear unit gearbox with motor (reall photo)

Dimensions

SIZE	Shaft Dia (mm)	Solid Hallow	Center Height	Output Flange Dia.(mm)	Power(kw)	Ratio	Permissible Torque(N.m)	(KGS)
37	φ20k6	φ20h7	82	φ120/160	0.18-0.75	10.27-165.71	90	7
47	φ25k6	φ25h7	100	φ160	0.18-1.50	11.46-244.74	170	10
57	φ30k6	φ30h7/35h7	180	φ200	0.18-3.0	10.78-196.21	300	14
67	φ35k6	φ40h7/45h7	140	φ200	0.25-5.50	11.55-227.20	520	26
77	φ45k6	φ50h7/60h7	180	φ250	0.55-7.50	9.96-241.09	1270	50
87	φ60m6	φ60h7/70h7	225	φ350	0.75-15.0	11.83-223.26	2280	100
97	φ70m6	φ70h7/90h7	280	φ450	1.50-22.0	12.5-230.48	4000	170
