Product Name:
R167 Helical gear reducer R167 gearbox and R167 gear motor
Model No.:
R167

Product Abstract:

R167 Helical gear reducer R167 gearbox and R167 gear motor Motor power:11kw 15kw 18.5kw 22kw 30kw 37kw 45KW 55KW 75KW 90KW 110KW 132KW 160KW Speed ratio: 1:3-1:300 R17 R27 R37 R47 R57 R67 R77 R87 R97 R107 R137 R147 R167

Product Description

R167 Helical gear reducer R167 gearbox and R167 gear motor

Motor power:11kw 15kw 18.5kw 22kw 30kw 37kw 45KW 55KW 75KW 90KW 110KW 132KW 160KW

Speed ratio: 1:3-1:300

Customise in color,nameplate,packing.

Contact us for enquiry and ordering:

whatsapp:+8613760859053

https://wa.me/8613760859053

email: sales@yygear.com

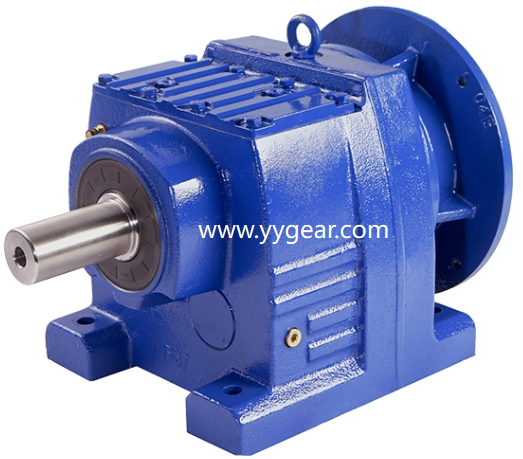

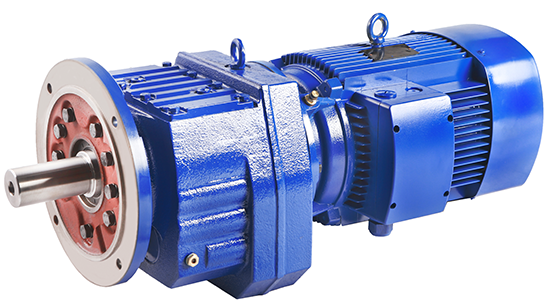

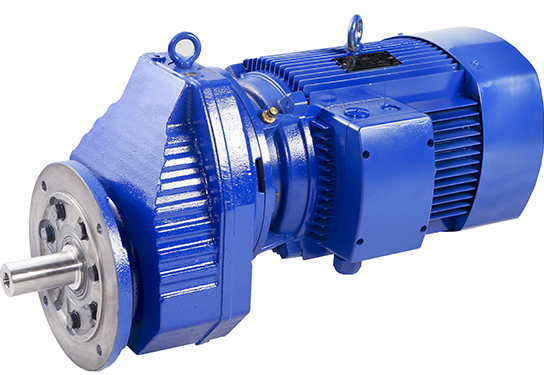

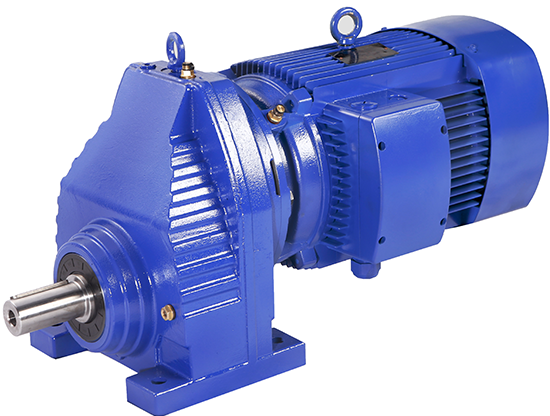

R167	RX167	RF167	RXF167

R167 series helical gear reducer has the characteristics of strong versatility, good combination and strong carrying capacity. It has the advantages of easy transmission ratio, high efficiency, small vibration and large radial load of shaft. This series not only can be combined with various reducers and transmissions to meet the requirements, but also facilitates the localization of related transmission equipment.

Product description
Feature	Main application industries
High modular design.	Cement machinery, environmental protection machinery, electronic appliances, road construction machinery,
The integral casting shell has compact size, high load carrying capacity, stable transmission and low noise.	Building materials machinery, rubber machinery, petroleum machinery and other industries
Good anti-leakage performance, good sealing, can be widely used in industrial production.
Energy efficient.
Cost savings and low maintenance costs.

Technical data
Shell material	Cast iron / ductile iron
Shell hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Gear surface hardness	HRC58 ° ~ 62 °
Gear core hardness	HRC33 ~ 40
Input / output shaft material	42CrMo alloy steel
Input / output shaft hardness	HRC25 ~ 30
Gear machining accuracy	Precision grinding, level 6 ~ 5
lubricating oil	GB L-CKC220-460, Shell withstand voltage 220-460
Heat treatment	Tempering, carburizing, quenching, etc.
effectiveness	94% ~ 96% (depending on the transmission stage)
Noise (maximum)	60 ~ 68dB
Temperature rise (MAX)	40 ° C
Temperature rise (oil) (maximum)	50 ° C
vibration	≤20µm
Recoil	≤20Arcmin

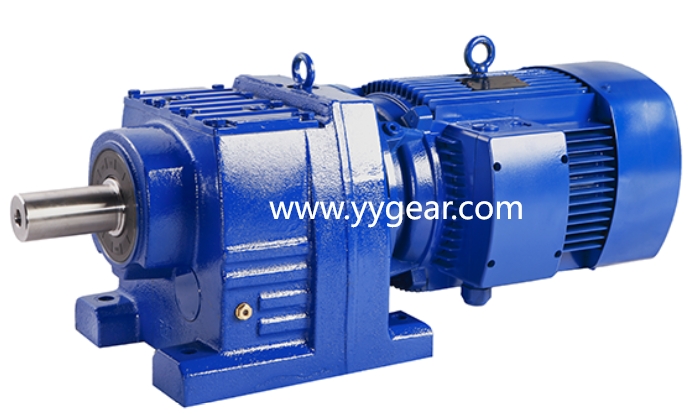

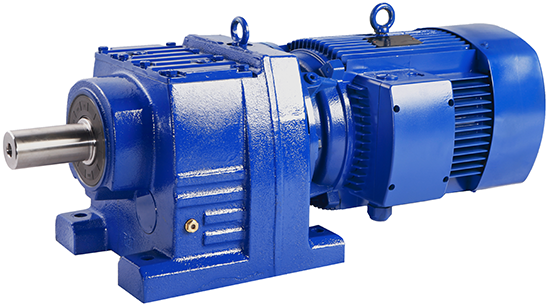

R167 helical gearbox with motor

Dimensions
Model Size	Shaft diameter	Center height	Output flange	Power (kw)	Speed ratio	Allowable	Weight
	Solid (mm)	(mm)	diameter(mm)			torque(N.m)	(KGS)

R17	φ20k6	75	φ120 / 140	0.18-0.75	3.83-74.84	85	4
R27	φ25k6	90	φ120 / 140	0.18-3.00	3.37-135.09	130	5.5
R37	φ25k6	90	φ160 / 200	0.18-3.00	3.33-134.82	200	8.5
R47	φ30k6	115	φ160 / 200	0.18-5.50	3.83-176.88	300	10
R57	φ35k6	115	φ200 / 250	0.18-7.50	4.39-186.89	450	18
R67	φ35k6	130	φ200 / 250	0.18-7.50	4.29-199.81	600	25
R77	φ40k6	140	φ250 / 300	0.18-11.00	5.21-195.24	820	36
R87	φ50k6	180	φ300 / 350	0.55-22.00	5.36-246.54	1550	63
R97	φ60m6	225	φ350 / 450	0.55-30.00	4.49-289.74	3000	101
R107	φ70m6	250	φ350 / 450	2.20-45.00	5.06-249.16	4300	153
R137	φ90m6	315	φ450 / 550	5.50-55.00	5.15-222.60	8000	220
R147	φ110m6	335	φ450 / 550	11.00-90.00	5.0-16.31	13000	400
R167	φ120m6	425	φ550 / 660	11.00-160.00	10.24-229.71	18000	700
