Helical Gear Motor,Ratio:1:3,1:5,1:8,1:10,1:15,1:20,1:25,1:30,1:35,1:40,1:45,1:50,1:60,1:70,1:80,1:90,1:100,1:150,1:180,1:200,1:250

Product Abstract:

YH-Horizontal Gear Motor Ratio:1:3,1:5,1:8,1:10,1:15,1:20,1:25,1:30,1:35,1:40,1:45,1:50,1:60,1:70,1:80,1:90,1:100,1:150,1:180,1:200,1:250 1.Rated Power:1/8HP,1/4HP,1/2HP,1HP,2HP,3HP,5HP 2.Speed Ratio:1:3-1:200 3.Output Shaft Dia: 18mm,22mm,28mm,32mm,40mm,50mm 4.Material of housing:Aluminium Alloy / Casting Iron 5.Single Phase / Three Phase 6.220v / 380v / 415V and others 7.50Hz / 60Hz


Product Description

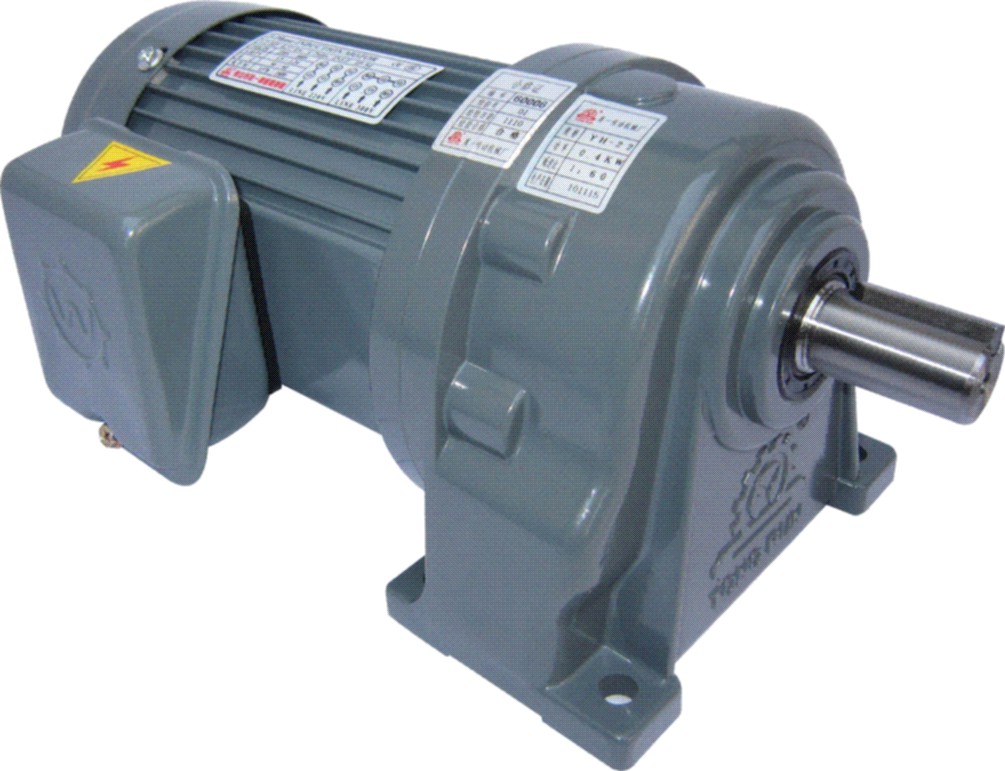

YH Series 1/8HP-5HP Foot Mount 3 Phase Horizontal Helical Geared Motor

1.Rated Power:1/8HP,1/4HP,1/2HP,1HP,2HP,3HP,5HP
2.Speed Ratio:1:3-1:200

3.Output Shaft Dia: 18mm,22mm,28mm,32mm,40mm,50mm

4.Material of housing:Aluminium Alloy / Casting Iron
5.Single Phase / Three Phase

6.220v / 380v / 415V and others

7.50Hz / 60Hz



Detailed Geared motor Description:



For YH gear motor, the cases are cast precisely by high steel material and processed at pricessing center; the gears are made of high-quality alloy steel, are treated with surface hardening and gear ground; The motor parts imported from Taiwan,The whole geared motors are small in volume, with great load-carrying capacity, steady running, low noise and high efficiency. YH geared motors have reached the advance international level, can replace the same kind of products imported.



Technique parameter:



Specification & Performance Reference Valuesor Gear Reducer Motor
3-PHASE 1-PHASE
PH HZ V A R.M.P PH HZ V A R.M.P
0.1KW 50/60 220/380 1.0/0.6 1350/1650 0.1KW 50/60 110/220 3.0/1.5 1350/1650
0.2KW 50/60 220/380 1.2/0.8 1350/1650 0.2KW 50/60 110/220 3.6/1.8 1350/1650
0.4KW 50/60 220/380 2.1/1.3 1380/1680 0.4KW 50/60 110/220 7.6/3.8 1380/1680
0.75KW 50/60 220/380 2.5/2.3 1400/1700 0.75KW 50/60 110/220 12./6 1400/1700
1.5KW 50/60 220/380 6/3.7 1410/1720 1.5KW 50/60 110/220 20./10 1410/1720
2.2KW 50/60 220/380 9./6 1410/1720
3.7KW 50/60 220/380 14./8 1420/1730

 YH
