0.4kw,400w,0.5hp-Helical Gear Motor

[Return Home] [Go Back]

0.4kw,400w,0.5hp-Helical Gear Motor

Product Abstract:

YH-Horizontal Gear Motor 1.Rated Power:0.4kw,400w,0.5hp 2.Speed Ratio:1:3-1:200 3.Output Shaft Dia: 18mm,22mm,28mm,32mm,40mm,50mm 4.Material of housing:Aluminium Alloy / Casting Iron 5.Single Phase / Three Phase 6.220v / 380v / 415V and others 7.50Hz / 60Hz


Product Description

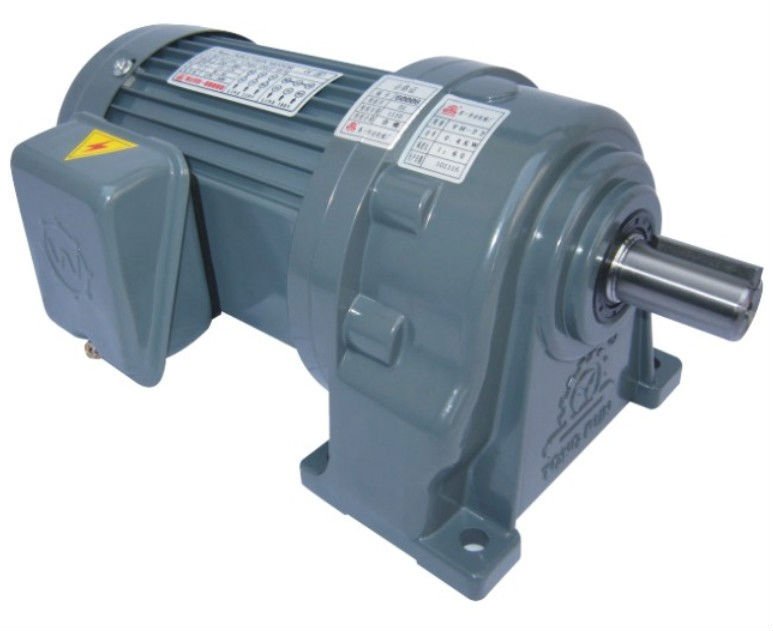

Type: YH - Horizontal foot mounted gearmotor gearbox reducer
1.Motor Power: 0.5HP,0.4kw,400w
2.Ratio: 3,5,7,10,13,15,20,25,30,35,40,50,60,70,80,90,100,120,130,140,150,160,180,200
3.Output Shaft Dia:  22mm,28mm,32mm,40mm
4.Material of housing: Aluminium Alloy-shaft 22mm,28mm,32mm,Casting Iron-shaft 32mm, 40mm
5.Phase: Single Phase, Three Phase
6.Volts: 220V,380V,415V,440V,480VAC
7.Hz: 50Hz,60Hz
8.Input RPM: 1400RPM

Detailed Specification:
Ratio Range A1 A2 D E F G H L J K M X Y Z Output shaft Kgs
P Q S T W
3-10 320 340 65 130 163 90 11 15 18.2 56 127 152 97.5 105 40 35 22 25 7 11
15-90 350 370 90 140 180 120 11 15 20.8 66 127 180 116 105 45 40 28 31 7 14
100-200 385 405 130 170 215 160 13 20 30.2 76 127 210 138.5 105 55 50 32 35.5 10 26
Detailed Geared motor Description:

YH gearmotor, its the cases are cast precisely by high steel material or Aluminium and processed by CNC processing center ; the gears are made of high-quality alloy steel, are treated with surface hardening and gear ground then precision grinding; The motor 100% copper wire imported from Taiwan,The whole geared motors are small in volume, with great load-carrying capacity, steady running, low noise and high efficiency.



All model type: YH,YV,YHM,YVM,YHD,YVD

Motor:100W 200W 400W 750W 1100W 1500W 2200W 3700W 5500W 7500W

          0.1KW  0.2KW 0.4KW 0.75KW 1.1KW 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW

          1/8HP 1/4HP 1/2HP 0.5HP 1HP 1.5HP 2HP 3HP 5HP 5.5HP 7.5HP 10HP

Shaft:18mm 22mm 28mm 32mm 40mm 50mm 60mm



Technique parameter:

Specification & Performance Reference Valuesor Gear Reducer Motor
3-PHASE 1-PHASE
PH HZ V A R.M.P PH HZ V A R.M.P
0.1KW 50/60 220/380 1.0/0.6 1350/1650 0.1KW 50/60 110/220 3.0/1.5 1350/1650
0.2KW 50/60 220/380 1.2/0.8 1350/1650 0.2KW 50/60 110/220 3.6/1.8 1350/1650
0.4KW 50/60 220/380 2.1/1.3 1380/1680 0.4KW 50/60 110/220 7.6/3.8 1380/1680
0.75KW 50/60 220/380 2.5/2.3 1400/1700 0.75KW 50/60 110/220 12./6 1400/1700
1.5KW 50/60 220/380 6/3.7 1410/1720 1.5KW 50/60 110/220 20./10 1410/1720
2.2KW 50/60 220/380 9./6 1410/1720
3.7KW 50/60 220/380 14./8 1420/1730


About YINGYI transmission:
