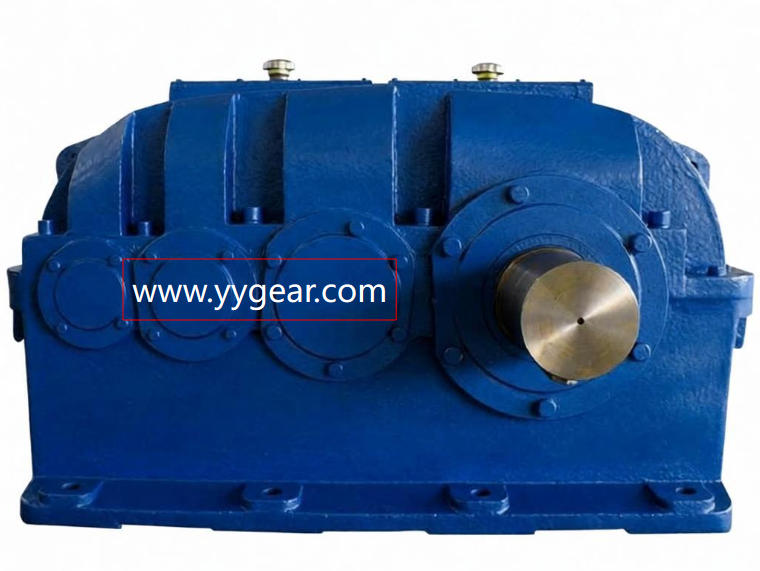

ZSY560 Hardened Tooth Surface Gearbox and Heavy duty load helical gearbox Cylindrical gear reducer

Motor power: 395KW 470KW 540KW 605KW 675KW 750KW 850KW 930KW 1025KW 1140KW 1260KW 1405KW 1450KW

Speed ratio: 1:22.4, 1:25, 1:28, 1:31.5, 1:35.5, 1:40, 1:45, 1:50, 1:56, 1:63, 1:71, 1:80, 1:90, 1:100

All model size:

ZSY160、ZSY180、ZSY200、ZSY224、ZSY250、ZSY280、ZSY315、ZSY355、ZSY400、ZSY450、ZSY500、ZSY560、ZSY630、ZSY710

Product Overview:

ZSY560 is a ‌three-stage hardened cylindrical gear reducer‌, complying with the JB/T8853 standard. Its core parameters vary with the nominal transmission ratio, and the key data are summarized as follows:

Core Specification Parameters

• ‌Model Meaning‌: Z (Cylindrical), S(Three-stage), Y (Hardened Tooth Surface).
• ‌Input Speed‌: Usually ≤1500 r/min (also adaptable to 1000/750 r/min).
• ‌Tooth Surface Hardness‌: HRC 54-62 (carburizing and quenching process).
• ‌Transmission Efficiency‌: Three-stage transmission efficiency >85%.
• ‌Applicable Environment‌: Temperature -40℃~45℃, circumferential speed ≤20 m/s.

Typical Operating Condition Parameters (Input Speed 1500 r/min)

Note: If the input speed is 1000 r/min, the power needs to be converted proportionally (about 65%-70% of the value at 1500 r/min).
