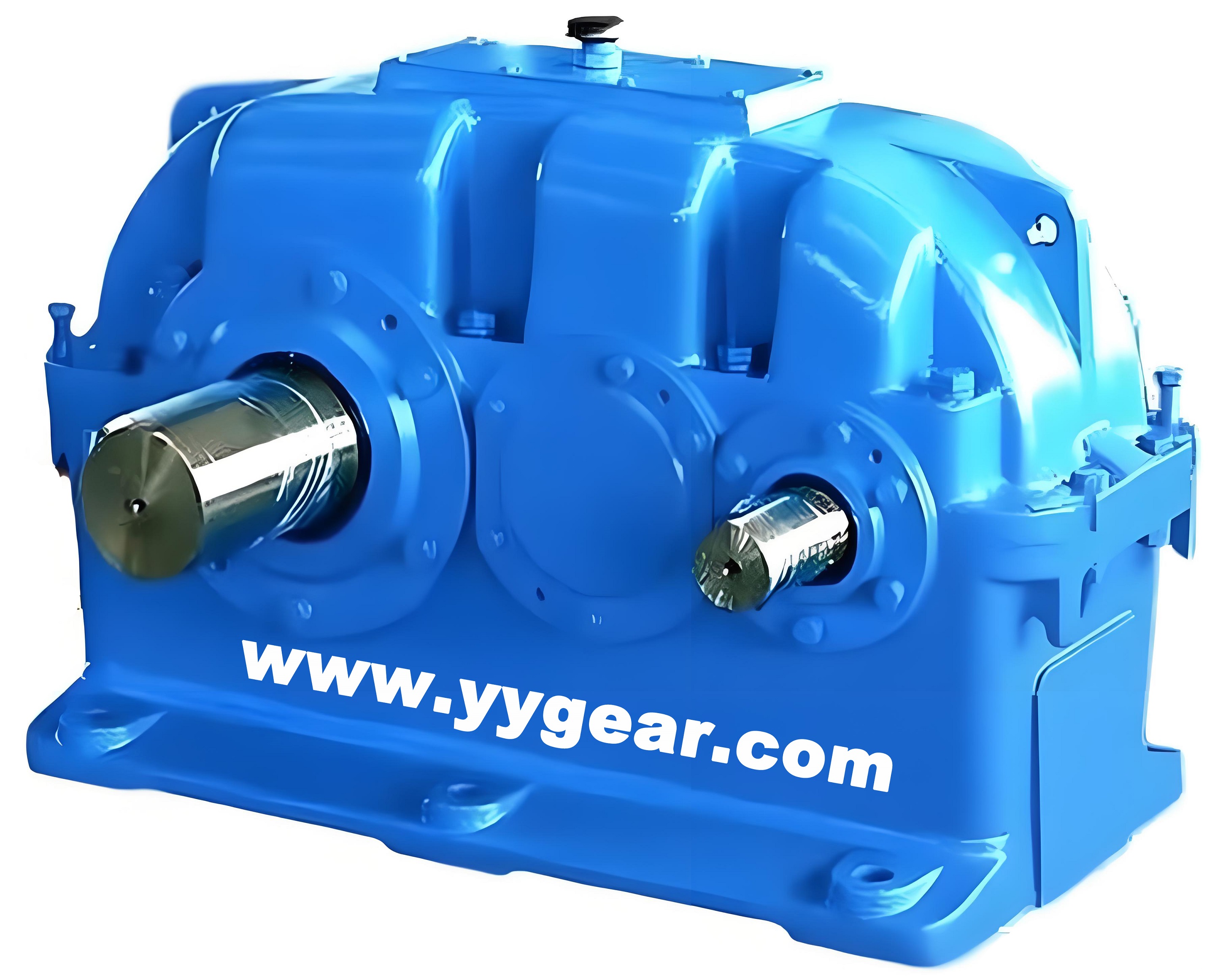

ZLY315 Hardened Tooth Surface Gearbox and Heavy duty load helical gearbox Cylindrical gear reducer

Motor power: 296KW 326KW 362KW 404KW 450KW 500KW 555KW 612KW 678KW 719KW 791KW

Speed ratio: 1:6.3, 1:7.1, 1:8, 1:9, 1:10, 1:11.2, 1:12.5, 1:14, 1:16, 1:18, 1:20

All model size:

ZLY112、ZLY125、ZLY140、ZLY160、ZLY180、ZLY200、ZLY224、ZLY250、ZLY280、ZLY315、ZLY355、ZLY400、ZLY450、ZLY500、ZLY560、ZLY630、ZLY710

Product Overview:

ZLY315 is a ‌two-stage hardened cylindrical gear reducer‌ with a center distance of 315mm, complying with the JB/T8853 standard. Its core parameters vary with the nominal transmission ratio, and the key data are summarized as follows:

Core Specification Parameters

• ‌Model Meaning‌: Z (Cylindrical), L (Two-stage), Y (Hardened Tooth Surface), 315 represents the nominal center distance (mm).
• ‌Input Speed‌: Usually ≤1500 r/min (also adaptable to 1000/750 r/min).
• ‌Tooth Surface Hardness‌: HRC 54-62 (carburizing and quenching process).
• ‌Transmission Efficiency‌: Two-stage transmission efficiency >93%.
• ‌Applicable Environment‌: Temperature -40℃~45℃, circumferential speed ≤20 m/s.

Typical Operating Condition Parameters (Input Speed 1500 r/min)

Note: If the input speed is 1000 r/min, the power needs to be converted proportionally (about 65%-70% of the value at 1500 r/min).
