YV22 GV22 CV22 helical gearbox reducer with 1/2HP,0.4KW,400W gear motor

Home > Helical Gear Motors > YV18-50 Helical Gear Motors > YV22 GV22 CV22 helical gearbox reducer with 1/2HP,0.4KW,400W gear motor

[Return Home] [Go Back]

Product Name:
YV22 GV22 CV22 helical gearbox reducer with 1/2HP,0.4KW,400W gear motor
Model No.:
YV22
Attachment download

Product Abstract:

YV22 GV22 CV22 helical gearbox reducer with 1/2HP,0.4KW,400W gear motor Speed .Ratio: 3,5,7,10,13,15,20,25,30,35,40,50,60,70,80,90,100,120,130,140,150,160,180,200 Material: housing-Aluminium, wire- 100% copper. Three Phase AC motor,220V,380V,415V,440V,480V

Product Description

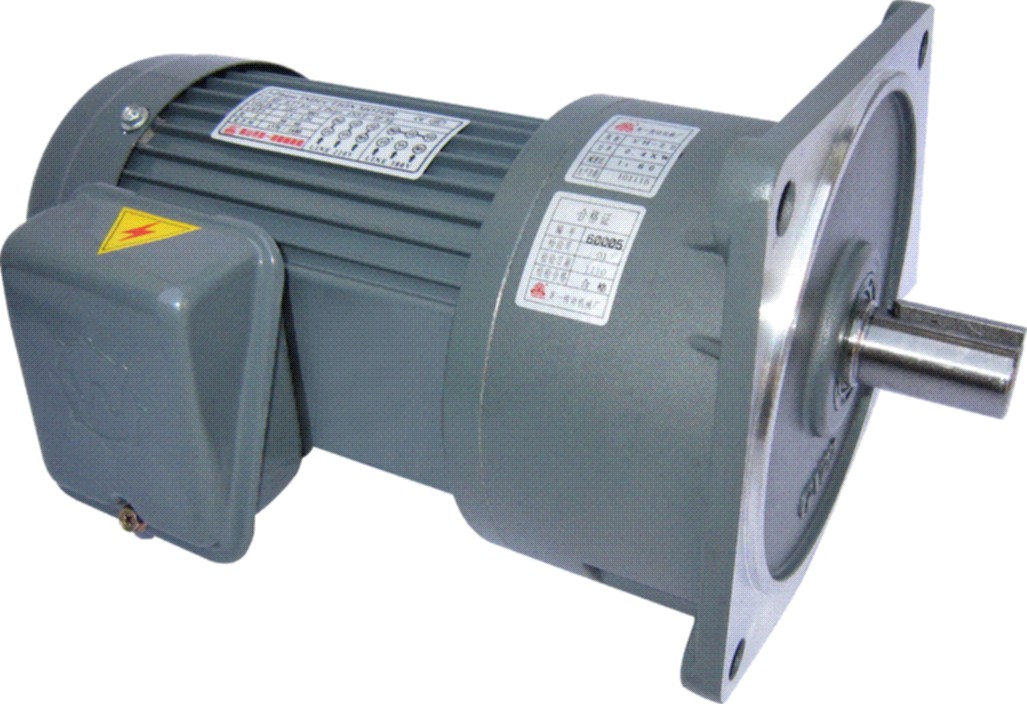

YV22 GV22 CV22 helical gearbox reducer with 1/2HP,0.4KW,400W gear motor

Speed ratio: 1:3-1:300

Customise in logo,nameplate,packing.

Contact us for enquiry and ordering:

whatsapp:+8613760859053

https://wa.me/8613760859053

email: sales@yygear.com

YH22	YV22	YHM22	YVM22

Type:	YV22 - Horizontal foot mounted gearmotor gearbox reducer
1.Motor Power:	1/4HP,0.2KW,200W / 1/2HP,0.4KW,400W / 1/8HP,0.1KW,100W
2.Ratio:	3,5,7,10,13,15,20,25,30,35,40,50,60,70,80,90,100,120,130,140,150,160,180,200
3.Output Shaft Dia:	22mm
4.Material of housing:	Aluminium-shaft 22mm
5.Phase:	Three Phase
6.Volts:	220V,380V,415V,440V,480VAC
7.Hz:	50Hz,60Hz
8.Input RPM:	1400RPM

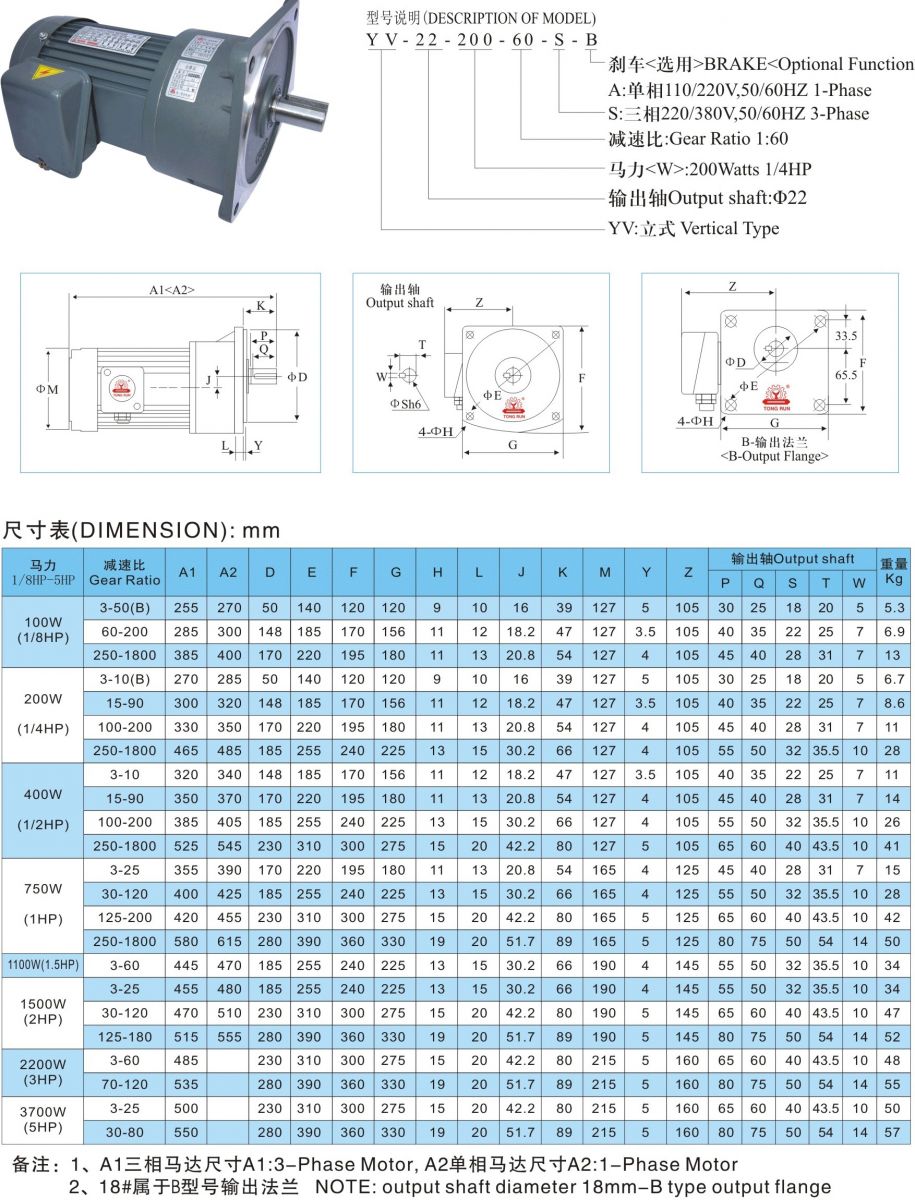

Detailed Specification:

Detailed Geared motor Description:

YV gearmotor, its the cases are cast precisely by high steel material or Aluminium and processed by CNC processing center ; the gears are made of high-quality alloy steel, are treated with surface hardening and gear ground then precision grinding; The motor 100% copper wire,The whole geared motors are small in volume, with great load-carrying capacity, steady running, low noise and high efficiency.

All model type: YH,YV,YHM,YVM,YHD,YVD

Motor:100W 200W 400W 750W 1100W 1500W 2200W 3700W 5500W 7500W

0.1KW 0.2KW 0.4KW 0.75KW 1.1KW 1.5KW 2.2KW 3.7KW 5.5KW 7.5KW

1/8HP 1/4HP 1/2HP 0.5HP 1HP 1.5HP 2HP 3HP 5HP 5.5HP 7.5HP 10HP

Shaft:18mm 22mm 28mm 32mm 40mm 50mm 60mm

Technique parameter:

Specification & Performance Reference Valuesor Gear Reducer Motor
3-PHASE					1-PHASE
PH	HZ	V	A	R.M.P	PH	HZ	V	A	R.M.P
0.1KW	50/60	220/380	1.0/0.6	1350/1650	0.1KW	50/60	110/220	3.0/1.5	1350/1650
0.2KW	50/60	220/380	1.2/0.8	1350/1650	0.2KW	50/60	110/220	3.6/1.8	1350/1650
0.4KW	50/60	220/380	2.1/1.3	1380/1680	0.4KW	50/60	110/220	7.6/3.8	1380/1680
0.75KW	50/60	220/380	2.5/2.3	1400/1700	0.75KW	50/60	110/220	12./6	1400/1700
1.5KW	50/60	220/380	6/3.7	1410/1720	1.5KW	50/60	110/220	20./10	1410/1720
2.2KW	50/60	220/380	9./6	1410/1720
3.7KW	50/60	220/380	14./8	1420/1730
