CYCLOID GEAR REDUCER

[Return Home] [Go Back]

Product Name:
CYCLOID GEAR REDUCER
Model No.:
BWD/XWD

Product Abstract:

CYCLOID GEAR REDUCER,cycloidal gearbox,cycloid gear motor BWD01 B02 B03.... XWD2,XWD3,XWD4,XWD5,XWD6,XWD7,XWD8,XWD9,XWD10,XWD11,XWD12 JX01 JX02 JX03...

Product Description

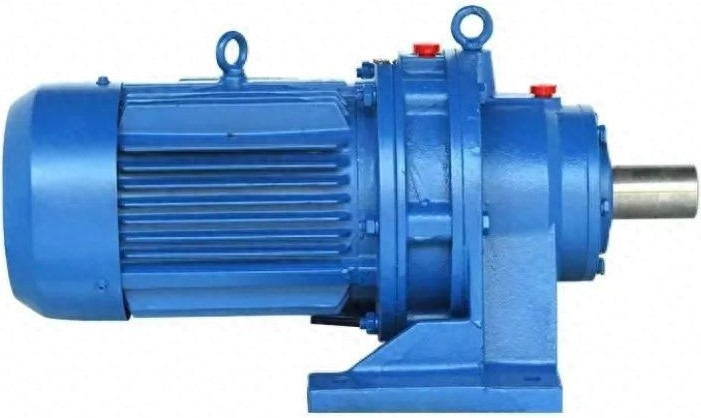

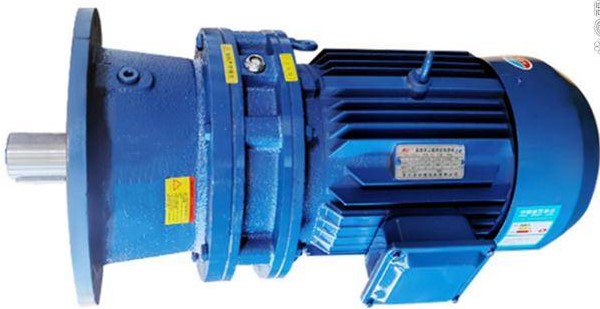

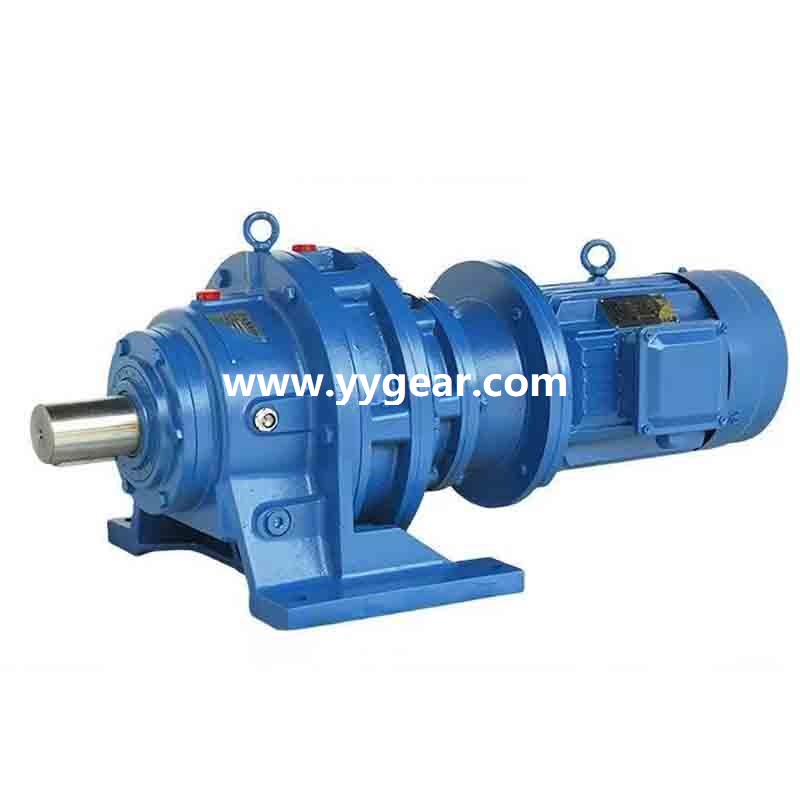

CYCLOID GEAR REDUCER,cycloidal gearbox,cycloid gear motor

Customise in color,nameplate,packing.

Contact us for enquiry and ordering:

whatsapp:+8613760859053

https://wa.me/8613760859053

email: sales@yygear.com

Type / Model:

Single Stage	BWD/BLD	09	0	1	2	3	4		5	6	7	8	9
Single Stage	XWD/XLD	1	2	3	4	5	6	7	8	9	10	11	12	12
Two Stages	BWED/BLED	10	20	31	41	42	52	53	63	64	74	84	85	95
Two Stages	XWED/XLED	32	42	53	63	64	84	85	95	96	106	117	118	128
Three Stages	BWSD/BLSD	2009	320	420	531	631	742	852	953
Three Stages	XWSD/XLSD	421	542	642	853	953	1064	1184	1285

Speed Ratio:

Single Stage	1:7, 1:9, 1:11, 1:13, 1:15, 1:17, 1:19, 1:23, 1:29, 1:35, 1:43, 1:59, 1:71, 1:87:
Two Stages	1:99, 1:121, 1:187, 1:289, 1:319, 1:391, 1:493, 1:595, 1:649, 1:731, 1:841, 1:1003, 1:1225, 1:1357, 1:1505, 1:1849, 1:2065, 1:2537, 1:3053, 1:3481, 1:4189, 1:5133, 1:6177, 1:7569
Three Stages	1:8041 - 1:658503

	Single Stage

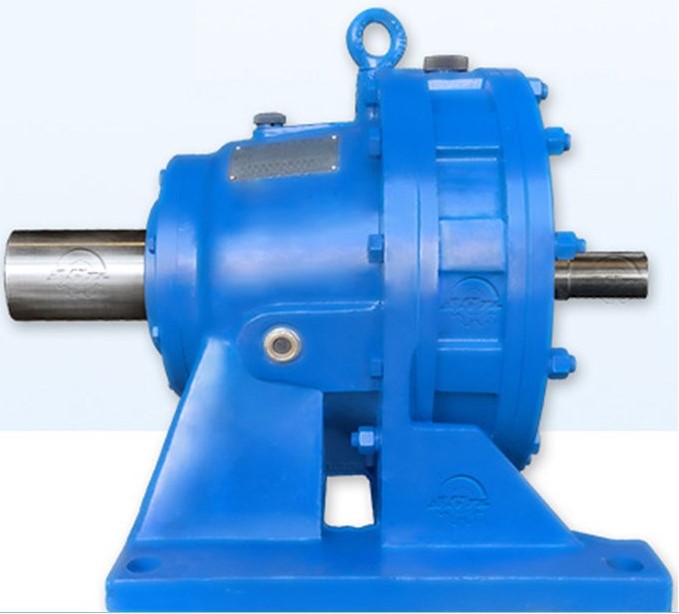

BWD / XWD	BW / XW	BWY / XWY+Motor

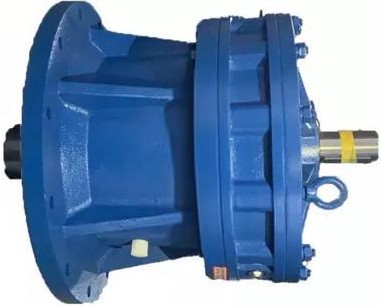

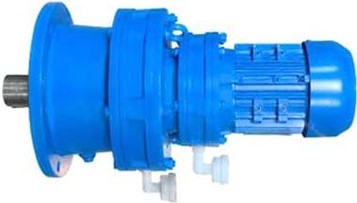

BLD / XLD	BL / XL	BLY / XLY +Motor


	Two Stage
BWED / XWED	BWE / XWE	BWEY / XWEY+Motor

BLED / XLED	BLE / XLE	BLEY / XLEY +Motor

XWD2,XWD3,XWD4,XWD5,XWD6,XWD7,XWD8,XWD9,XWD10

B01 B02 B03....

JX01 JX02 JX03...

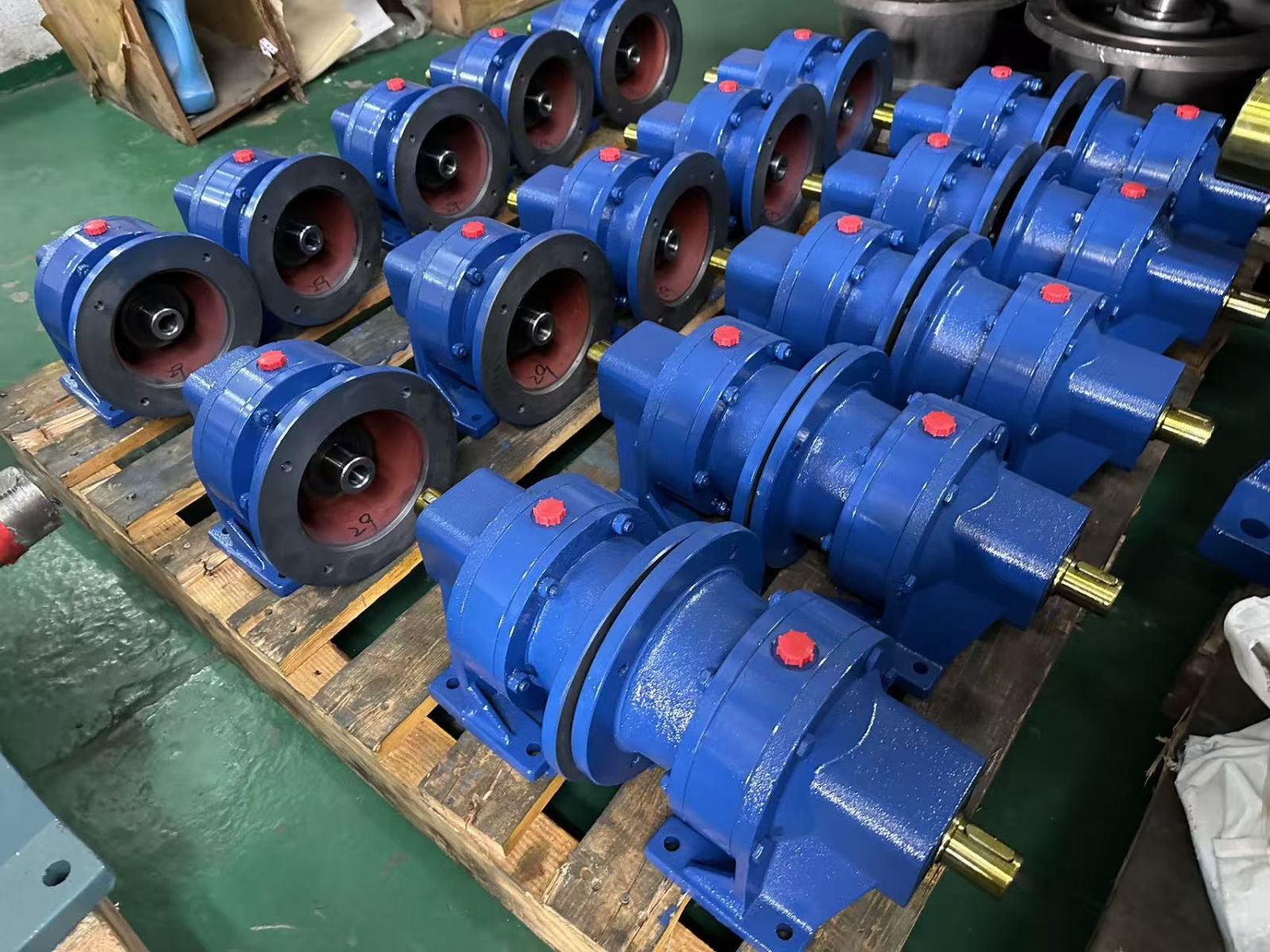

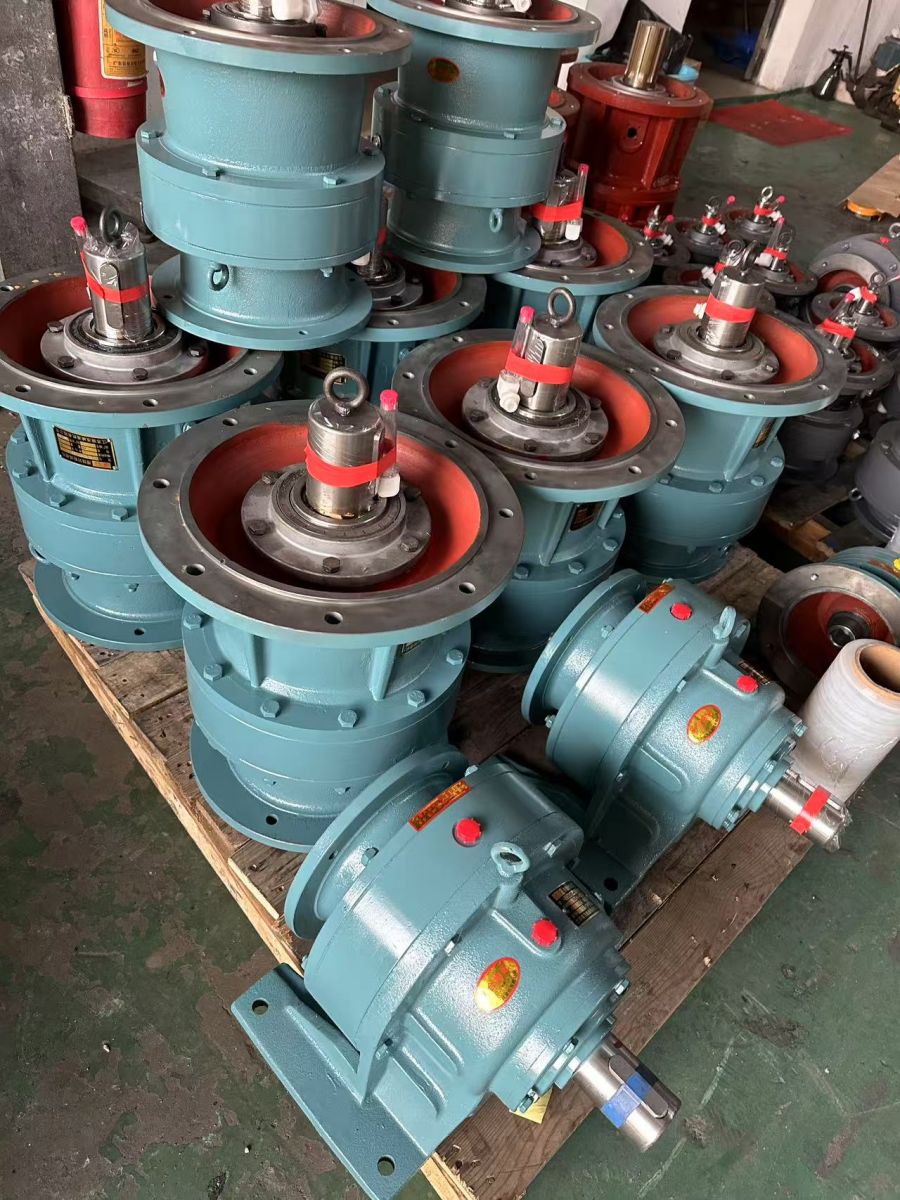

XWD/BWD/JXJ Cycloid gearbox Cycloidial pin wheel gear speed motor reducer

XWD2,XWD3,XWD4,XWD5,XWD6,XWD7,XWD8,XWD9,XWD10

B01 B02 B03....

JX01 JX02 JX03...

Cycloidal gear drives are unique and are still unsurpassed where drive technology is concerned. The cycloidal speed reducer is superior to traditional gear mechanisms, since it only operates with rolling force and is not exposed to shear forces. By comparison with gears with contact loads, Cyclo drives are more resistant and can absorb extreme shock loads by means of uniform load distribution over the power transmitting components. Cyclo drives and cyclo drive geared motors are characterized by their reliability, long service life and outstanding efficiency, even under difficult conditions.

product description

Main application industries

Features

-High standard modular design

-High-quality materials ensure product reliability

-High strength, compact size

-long lasting

- high efficiency

-Strong radial load capacity

-High cost performance

-Belt conveyor drive

-Bucket elevator

-Agitator driver

-Hoisting gear drive

-Walking gear transmission

-Paper machine driver

-Dryer driver

-Water screw driver

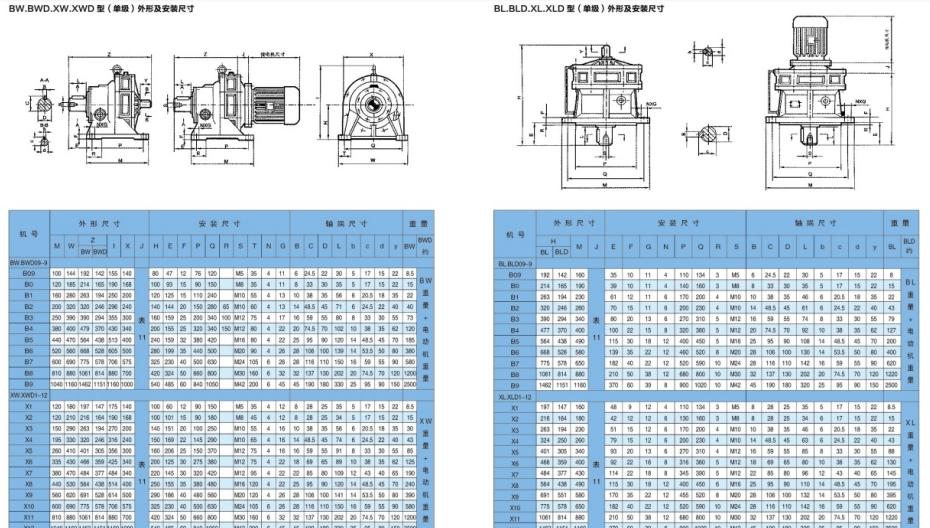

model	power	Speed ratio	Maximum torque	Output shaft diameter	Input shaft diameter
1 stage
X2 (B0 / B12)	0.37 ~ 1.5	9 ~ 87	150	Φ25 (Φ30)	Φ15
X3 (B1 / B15)	0.55 ~ 2.2	9 ~ 87	250	Φ35	Φ18
X4 (B2 / B18)	0.75 ~ 4.0	9 ~ 87	500	Φ45	Φ22
X5 (B3 / B22)	1.5 ~ 7.5	9 ~ 87	1,000	Φ55	Φ30
X6 (B4 / B27)	2.2 ~ 11	9 ~ 87	2,000	Φ65 (Φ70)	Φ35
X7	3.0 ~ 11	9 ~ 87	2,700	Φ80	Φ40
X8 (B5 / B33)	5.5 ~ 18.5	9 ~ 87	4,500	Φ90	Φ45
X9 (B6 / B39)	7.5 ~ 30	9 ~ 87	7,100	Φ100	Φ50
X10 (B7 / B45)	15 ~ 45	9 ~ 87	12,000	Φ110	Φ55
X11 (B8 / B55)	18.5 ~ 55	9 ~ 87	20,000	Φ130	Φ70
2 stages
X32 (B10)	0.25 ~ 0.55	121 ~ 1849	-	Φ35	Φ15
X42 (B20 / B1812)	0.37 ~ 0.75	121 ~ 1849	-	Φ45	Φ15
X53 (B31 / B2215)	0.55 ~ 1.5	121 ~ 1849	-	Φ55	Φ18
X63 (B41 / B2715)	0.75 ~ 2.2	121 ~ 1849	-	Φ65 (Φ70)	Φ18
X64 (B42 / B2718)	0.75 ~ 2.2	121 ~ 1849	-	Φ65 (Φ70)	Φ22
X74	1.1 ~ 3.0	121 ~ 1849	-	Φ80	Φ22
X84 (B52 / B3318)	1.5 ~ 4.0	121 ~ 1849	-	Φ90	Φ22
X85 (B53 / B3322)	2.2 ~ 5.5	121 ~ 1849	-	Φ90	Φ30
X95 (B63 / B3922)	3.0 ~ 7.5	121 ~ 1849	-	Φ100	Φ30
X106	4.0 ~ 11	121 ~ 1849	-	Φ110	Φ35
