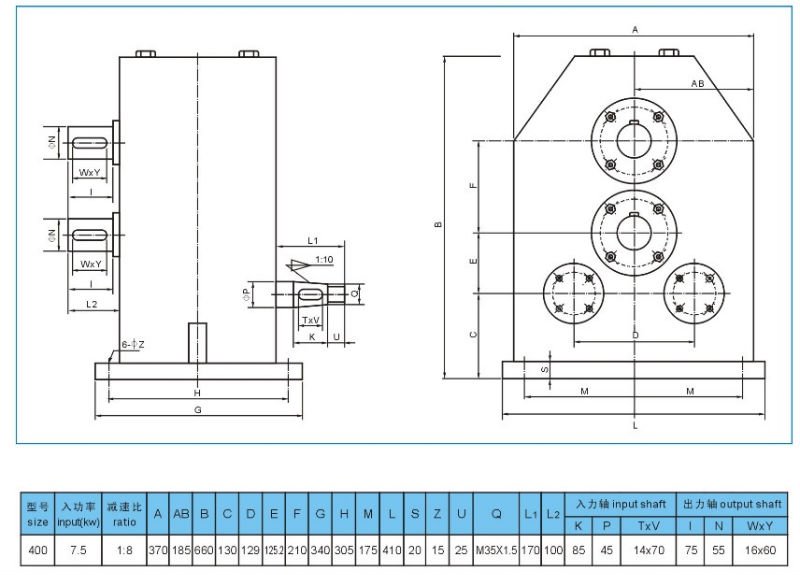

JZT400 Gear Reducer
Ratio:1:8
Input Power:7.5KW

Specifiction:

1. Slow than a wide range,
2,Smooth running, low noise,
3,Min: 1Set

 Features:
1. Slow than a wide range,
2. Mechanical transmission efficiency high, secondary, tertiary, da big 96%; 94%,
3. Smooth running, low noise,
4. Due to the 42CrMo, quenching and tempering treatment by forging 35CrMo respectively, making the gear axis and gear, so long service life, high bearing capacity,
5. Easy to overhauling, easy to install.

Applicable condition:
1. Gear circumference speed is not more than dedicated 16m/s,
2. No greater than high-speed shaft speed 1000r/min,
3. Working environment temperature of 40-45 ° C,
4. Can be both the positive and negative direction operation.
